BTU0160-010-F-SS - Datasheet
MBA
Category Information

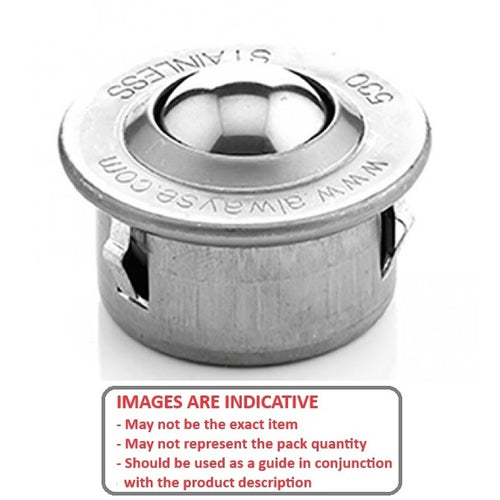

Ball Transfer Units - Flange Mount - Standard - Stainless - DeepDeep Stainless Standard Flange Mount Ball Transfer Units. This is the main category in this series
- Single ball bearing units for conveyor systems
- Max Load is applicable when used as a transfer, not as a castor
Product Data
- Max Load : 160 kg

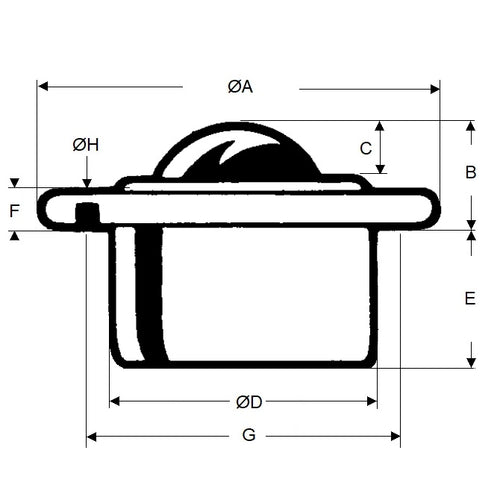

- Ball Height from Flange (B)
9.8
mm
+/- 0.2
(Equiv. 0.386 in.) - Body Diameter (D)
36
mm
+/- 0.080
(Equiv. 1.417 in.) - Overall Height (L) 30.0 mm
- Ball Diameter 15.0 mm
- Body Height 20.2 mm
- Flange Diameter 31.0 mm
- Flange Thickness 2.8 mm
- Material Stainless Steel AISI 420C and Zinc Plated Mild Steel
Product Compliance and Data
Additional Resources
Cross References
- SKF-702
- SKF702
