W0060-D-015-006-C - Datasheet
MBA
Category Information

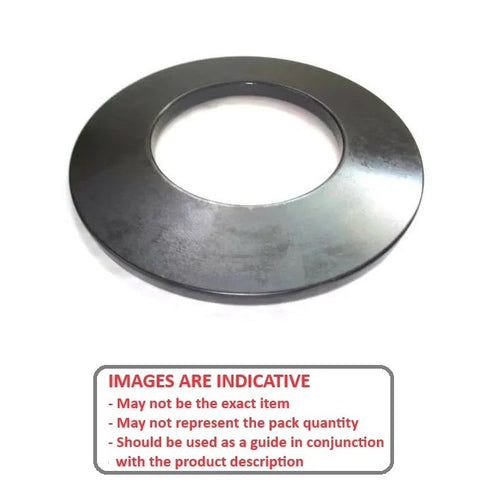

Washers - Disc Spring - Standard - Carbon SteelCarbon Steel Standard Disc Spring Washers. Includes disc springs to DIN 2093.
- Disc spring washer, also known as a Belleville washer, is a conical-shaped washer designed to act as a spring.
- Provides a high spring force within a small space and can be stacked in various configurations to adjust load and deflection characteristics.
- Washers are used to add vibration resistance, preload to bolted assemblies, and to compensate for material expansion or contraction.
- Manufactured under strict quality control to conform to DIN 2093.

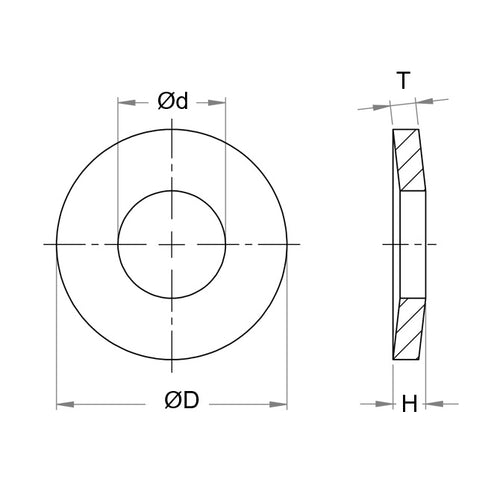

Product Data
- Nominal Outside Diameter (A)
:
15.00
mm
(Equiv. 0.591 in.) - Nominal Inside Diameter (B)
6.00
mm
+ 0.20 / - 0.00
(Equiv. 0.236 in.) - Stock Thickness (C)
0.60
mm
(Equiv. 0.024 in.) - Loaded Height (L1) 0.71 mm
- Load at L1 42.0 kg
- Free Height (E) 1.05 mm
- Actual ID (Ref) 6.2 mm
- Inside Height (D) 0.45 mm
- Material Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- WASCA DS150606
- S4237
