CCE-01500-S15 - Datasheet
MBA
Category Information

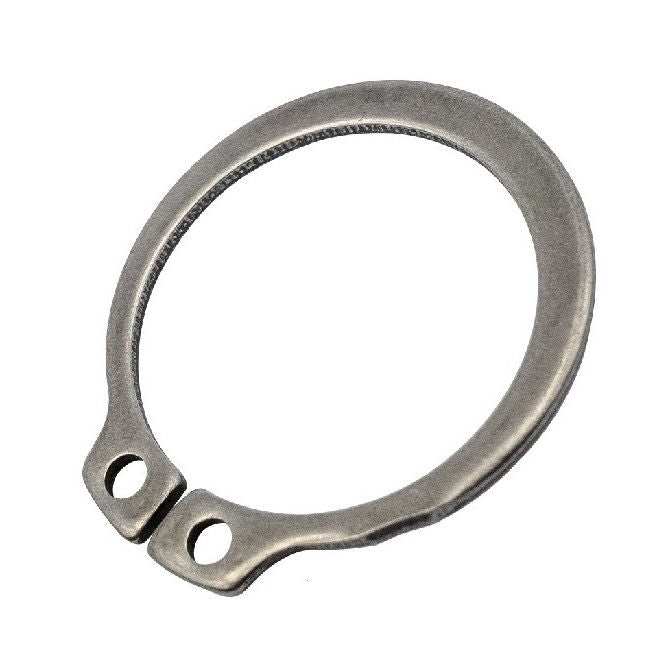

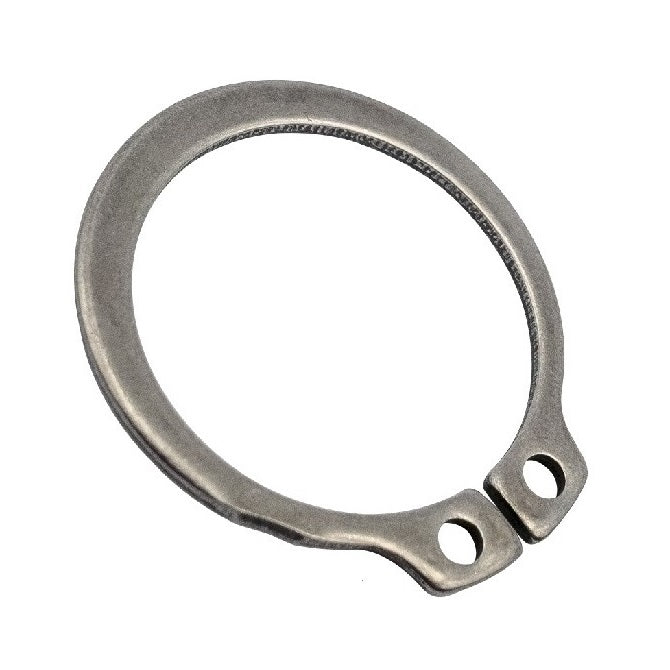

Retaining Rings - External - Circlips - Standard - Stainless SteelStainless Steel Standard Circlips External Retaining Rings. Imperial and metric DIN471 / D1400 / N1400 / D1460. PH15-7 Mo Stainless Steel. Retaining rings. Snap Rings (USA).
- An expanded range may be available on special order. Please enquire.
- PH15-7 Mo Stainless Steel.
Product Data
- Shaft Diameter (Ds)
:
15.00
mm
(Equiv. 0.591 in.) - Clip Thickness (T)
1.00
mm
+ 0.00 / - 0.11
(Equiv. 0.039 in.) - Groove Dia. (Dg)
14.30
mm
+ 0.00 / - 0.06
(Equiv. 0.563 in.) - Approx. Loose Circlip ID (A) 13.80 mm
- Groove Width (W) 1.10 mm
- Clearance on Shaft (C1) 22.60 mm
- Clearance in Groove (C1) 21.50 mm
- Min. Lug Diameter (h) 1.70 mm
- Min. Extension (n) 1.10
- Standard DIN471
- Material Stainless Steel Grade PH15-7 Mo
Product Compliance and Data
Additional Resources
Cross References
- Ellison 471-015-SS
- 90967A180
- Seeger A-015-SS
- Seeger A15K500-BLS
- Seeger A15X1SS
- Bossard BN818-015-SS
- Waldes D1400-015-SS
- NoCor DSH-015-SS
- Rotor Clip DSH-015-SS
- DSH015SS
- 14000150KSF
- 1400-0150KSF
- D14000150KSF
- D1400015SS
- D1400-0150KSF
- A15K500BLS
- A015SS
- 471015SS
- BN818015SS
