RS-600 - Datasheet

MBA

Category Information

Retaining Rings - External - Spiral Rings - Medium Duty - Carbon Steel

Carbon Steel Medium Duty Spiral Rings External Retaining Rings. AE / WS / AS3218 / RS / MIL-R-27426A1 - Spring Steel

  • An expanded range may be available on special order. Please enquire.
  • Popular series that will accommodate light and medium bearing series thrust loads.
  • Available in military and aerospace specifications.
  • Equivalent to Associated Spring: AE, Smalley: WS, Spirolox and Ramsey: RS, Aerospace AS3218, MIL-R-27426A1

Product Data

  • Shaft Diameter (Ds) : 152.40 mm
    (Equiv. 6 in.)
  • Clip Thickness (T) 1.83 mm +/- 0.10
    (Equiv. 0.072 in.)
  • Groove Dia. (Dg) 148.52 mm
    (Equiv. 5.847 in.)
  • Approx. Loose Circlip ID (A) 143.26 mm + 0.00 / - 1.27
  • Radial Wall (S) Approx. 6.35 mm +/- 0.13
  • Groove Width (W) 2.07 mm +/- 0.17
  • Approx. Loose Clip OD 155.96 +/- 0.06
  • Groove Depth (d) 1.96
  • Material Carbon Spring Steel
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • Smalley RS-600
  • Spirolox RS-600
  • NoCor WS-600
  • Smalley WS-600
  • RS600
  • WS600
View full details

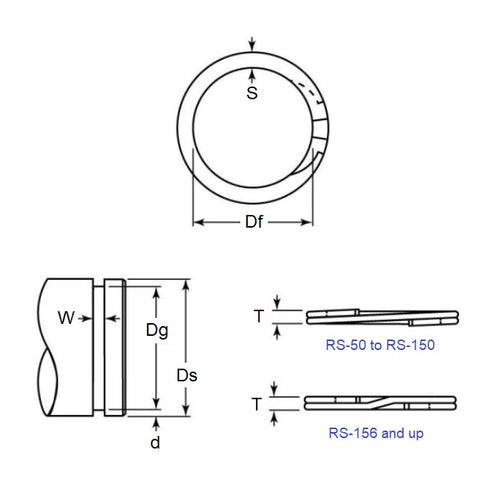

RS-600DiagramRS-600Image
