CSC-159-010-07-M - Datasheet
MBA
Category Information

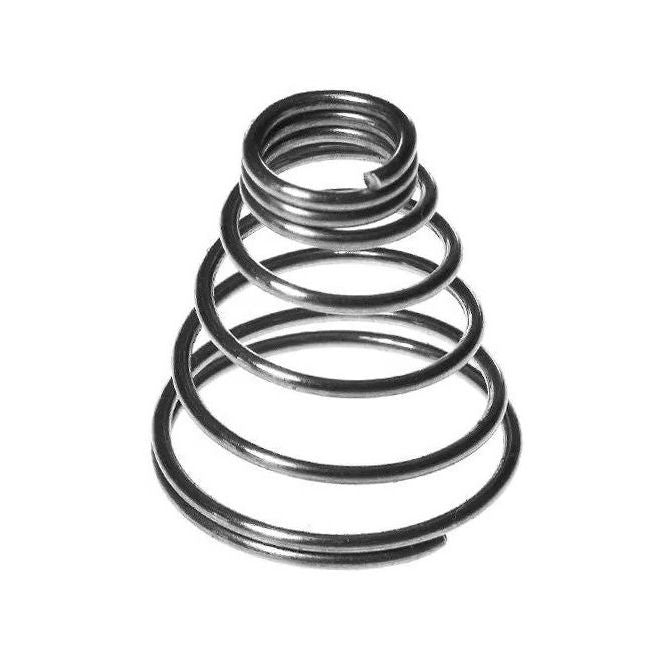

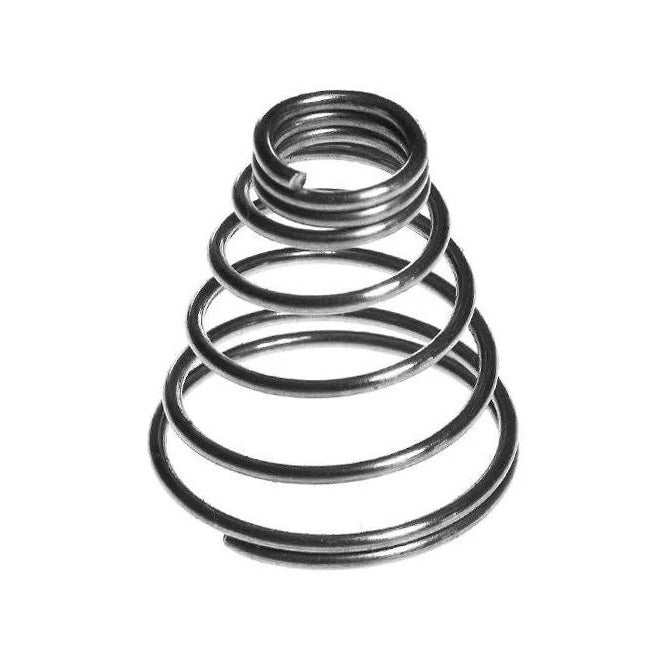

Springs - ConicalConical Springs. Conical 302 Stainless steel springs
- Solid height lower than a standard compression spring due to the conical shape
- Ends are closed
- Starting rate is the same as the kg/mm rate
Product Data
- Large End OD
:
15.90
mm
(Equiv. 0.626 in.) - Free Length
9.5
mm
(Equiv. 0.374 in.) - Small End OD
9.5
mm
(Equiv. 0.374 in.) - Inside Diameter Clearance 8.1 mm
- Wire Thickness 0.74 mm
- Rate 0.1 kg/mm
- Inside Diameter 8.1 mm
- Material Carbon Spring Steel Music Wire
Product Compliance and Data
Additional Resources
Cross References
- CX26
- CX-26
