CSC-159-017-08-M - Datasheet
MBA
Category Information

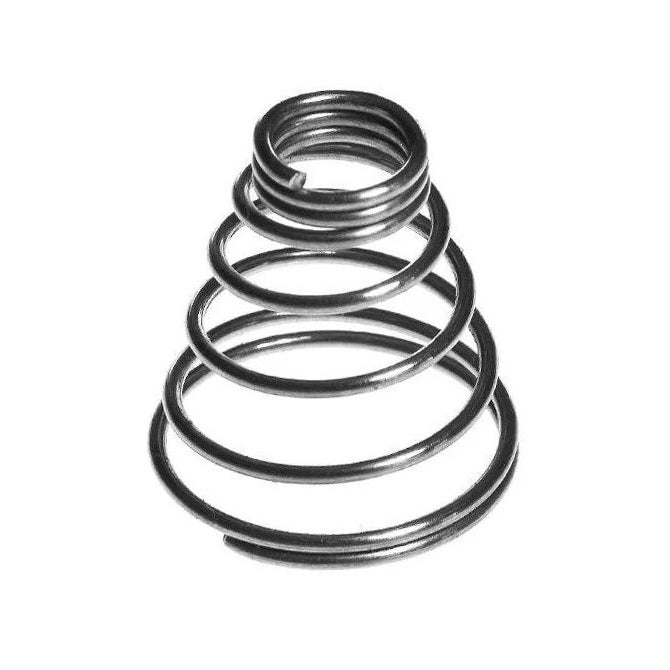

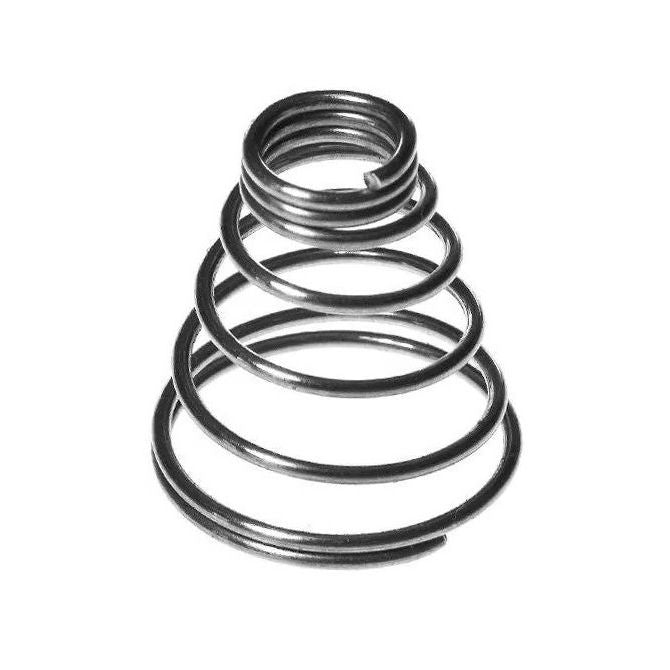

Springs - ConicalConical Springs. Conical 302 Stainless steel springs
- Solid height lower than a standard compression spring due to the conical shape
- Ends are closed
- Starting rate is the same as the kg/mm rate
Product Data
- Large End OD
:
15.90
mm
(Equiv. 0.626 in.) - Free Length
17.5
mm
(Equiv. 0.689 in.) - Small End OD
10.3
mm
(Equiv. 0.406 in.) - Inside Diameter Clearance 8.7 mm
- Wire Thickness 0.79 mm
- Rate 0.1 kg/mm
- Inside Diameter 8.7 mm
- Material Carbon Spring Steel Music Wire
Product Compliance and Data
Additional Resources
Cross References
- CX-28
- CX28
