BLP-159-0635-BT-S17 - Datasheet
MBA
Category Information

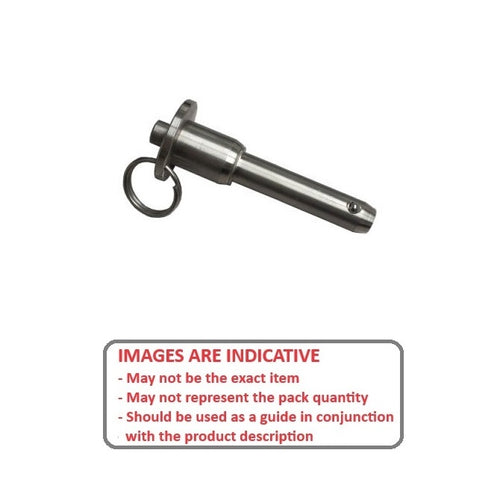

Pins - Ball Lock - Button Handle - Industrial Stainless SteelIndustrial Stainless Steel Button Handle Ball Lock Pins. 17-4 PH or PH15-7MO stainless steel spindle and shank. Handles aluminium unless noted otherwise.
- An expanded range may be available on special order. Please enquire.
- Positive lock detent pins.
- Aluminium handles.
- 300 Grade Stainless Components
- 440C Stainless Balls
Product Data

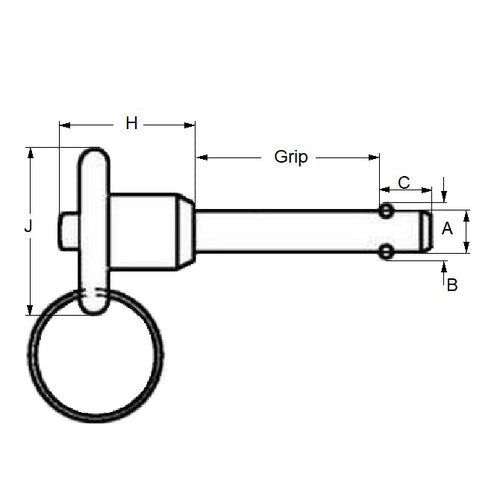

- Nominal Diameter
:
15.88
mm
(Equiv. 0.625 in.) - Grip Length (B)
63.50
mm
(Equiv. 2.5 in.) - Pin Material Grade 17-4 PH Stainless / Aluminium Handle
- Locking Ball to End (C) 14.73 mm
- Open Ball Distance (B) 19.05 mm
- Ring Diameter (F) 31.50 mm
- Handle Length (R) 35.56 mm
- Pull Out Strength 937.00 Kg
- Calc. Double Shear Strength 26018 Kg
- Max. Diameter 15.83 mm
- Min. Diameter 15.79 mm
- Material Stainless Steel 17-4 PH with Aluminium Handle
Product Compliance and Data
Additional Resources
Cross References
- BLBS190
- BLBS-190
- BLBS-190A
- BLBS190A
