BLP-159-1016-TI-S17 - Datasheet
MBA
Category Information

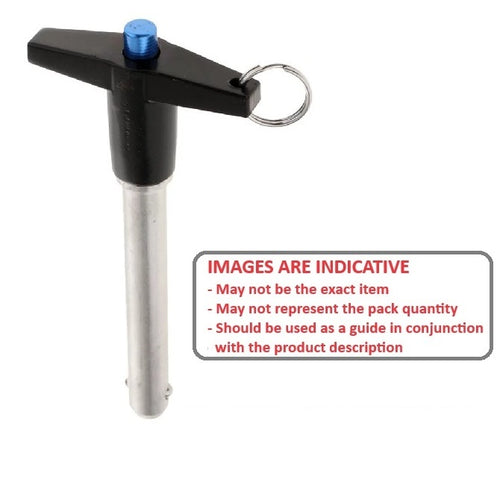

Pins - Ball Lock - No Shoulder - Tee Handle - Industrial - Stainless SteelStainless Steel Industrial Tee Handle No Shoulder Ball Lock Pins. Quick release. Body and spindle 17-4 PH stainless steel. Ring and spring 17-7 MO stainless steel. Handle and collar are 300 grade stainless. Tee handle.
- An expanded range may be available on special order. Please enquire.
- Positive lock detent pins.
- 300 Grade Stainless Components
- 440C Stainless Balls

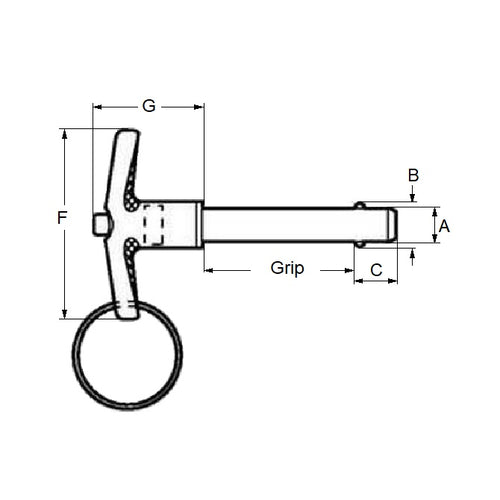

Product Data
- Nominal Diameter
:
15.88
mm
(Equiv. 0.625 in.) - Grip Length (B)
101.60
mm
(Equiv. 4 in.) - Pin Material Grade 17-4 PH Stainless
- Locking Ball to End (C) 14.73 mm
- Open Ball Distance (B) 19.05 mm
- Handle Width (F) 78.74 mm
- Handle Length (G) 43.18 mm
- Pull Out Strength 924.00 Kg
- Calc. Double Shear Strength 25570 Kg
- Max. Diameter 15.83 mm
- Min. Diameter 15.79 mm
- Material Stainless Steel 17-4 PH
