Miniature Bearings Australia
T-0159-0361-BND - Datasheet
MBA
Category Information

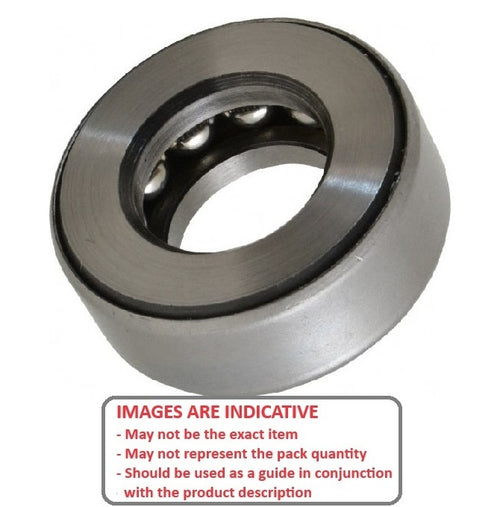

Bearings - Thrust Ball - BandedBanded Thrust Ball Bearings. 3 Piece Thrust Bearings Banded Type
- Thrust ball bearings provide for axial loads. They are designed to handle forces that push or pull along the axis of a rotating shaft
- Commonly used in automotive, electric motors, marine propulsion, pumps and compressors, aerospace applications, industrial machinery, and wind turbines.
- An expanded range may be available on special order. Please enquire.
Product Data

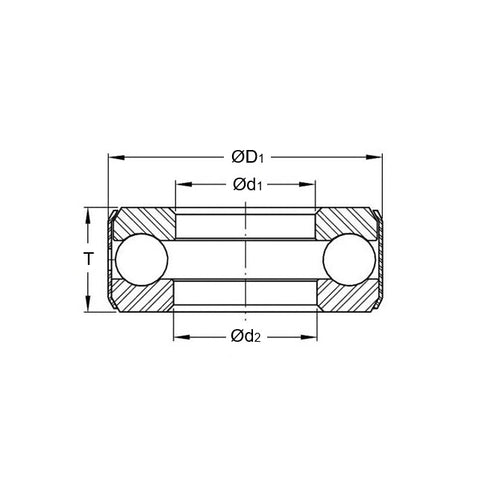

- Shaft Diameter (d1)
:
15.875
mm
(Equiv. 0.625 in.) - OD (D1)
36.119
mm
(Equiv. 1.422 in.) - Thickness (T)
11.506
mm
(Equiv. 0.453 in.) - Bore (d2) 16.662 mm
- Dynamic Load Capacity 437 kgf
- Static Load Capacity 616 kgf
- Max. Speed 1000 RPM
- Material Carbon Steel
Product Compliance and Data
Additional Resources
- Catalogue: Ceramic Bearings Catalogue
- Catalogue: Plastic Bearings Catalogue
- Catalogue: Standard Bearings Catalogue
- General: Bearing Cleanliness
- General: Bearing Clearances
- General: Bearing Flanges & Snap Rings
- General: Bearing Retainers (Cages)
- General: General Loads Information
- General: Lubrication
- General: Prefix & Suffix Guide
- General: Static vs Dynamic Loads
- Materials: 316 Stainless
- Materials: CASSTOP Anti-Corrosion Bearing Material
- Materials: Ceramic vs Ceramic Hybrid
- Materials: Ceramic Bearings in Vibratory Applications
- Materials: Ceramic Hybrid Bearings in Vibratory Applications
- Materials: General Bearing Materials
- Materials: Magnetism & Bearings
- Precision: 316 Stainless & Plastic Bearing Tolerances
- Precision: ABEC Basic Information
- Precision: Precision Bearing Tolerances
- Problem Solving: Bearing Failure
- Problem Solving: Fatigue (L10 Life)
- Problem Solving: Noise
Cross References
- NICE 606-V
- 606V
- SKF-9065
- SKF9065
