CP-159-HUB-G-CT-52 - Datasheet

MBA

Category Information

Couplings - Crowned Tooth Gear - Hubs Only

Hubs Only Crowned Tooth Gear Couplings. Match with sleeves from the sleeves category

  • An expanded range may be available on special order. Please enquire.
  • +/- 1.02 mm Axial Displacement.
  • 0.41mm Parallel offset per hub.
  • 1o Angular Displacement.
  • Free axial movement. 19.55 to 88 Nm. 8500 to 14000 rpm.
  • High torque / low inertia.

Product Data

  • Bore : 15.875 mm
  • Bore 15.875 mm
  • Sleeve OD 52.1 mm
  • Description Hub Only
  • Max Speed 10600 RPM
  • Max Torque 347.000 n.m
  • Hub. Config Set Screw
  • Hub Diameter (C) 36.068 mm
  • Hub Length (E) 21.336 mm
  • Material Steel
Country of Origin: US

Product Compliance and Data

Additional Resources

    Cross References

    • Reid Tool® GU-207
    • GU207
    View full details

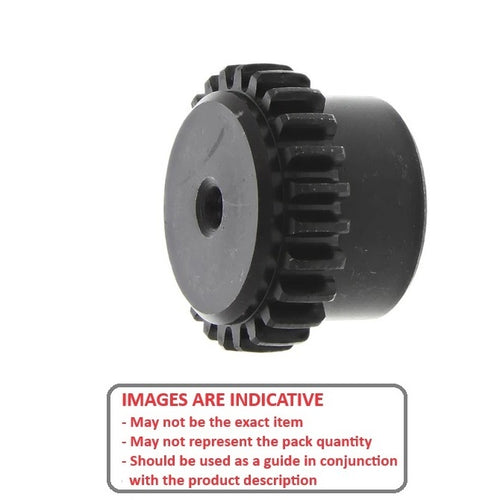

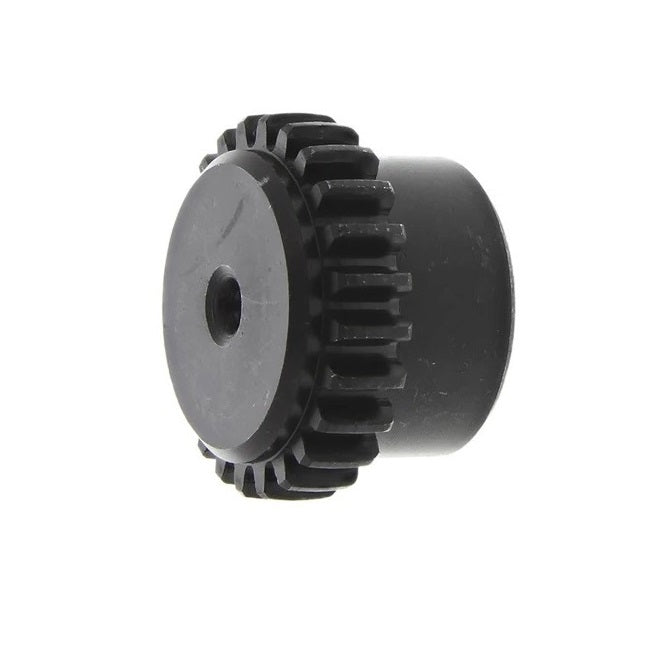

    CP-159-HUB-G-CT-52DiagramCP-159-HUB-G-CT-52Image
