QD-SK-0159 - Datasheet

MBA

Category Information

Bushings - QD

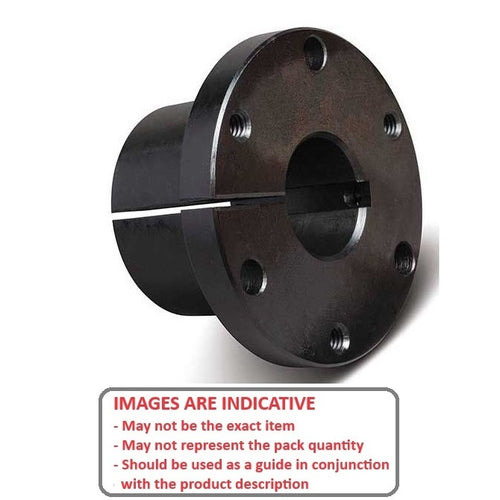

QD Bushings. Used with QD type cast iron vee pulleys, timing pulleys, sprockets, poly vee pulleys and other parts designed specifically for use with a QD bushing

  • Quick Disconnect (QD) bushing is a power transmission component with a split taper design that provides a strong, secure clamp on a shaft, allowing for easy installation and removal of sprockets, pulleys, and sheaves.
  • Similar to a taperlock bush, but not interchangeable
  • QD bushings like taperlock bushings allow for use of a single stock pulley for many applications with different shaft sizes
  • Select the correct QD series to suit the pulley

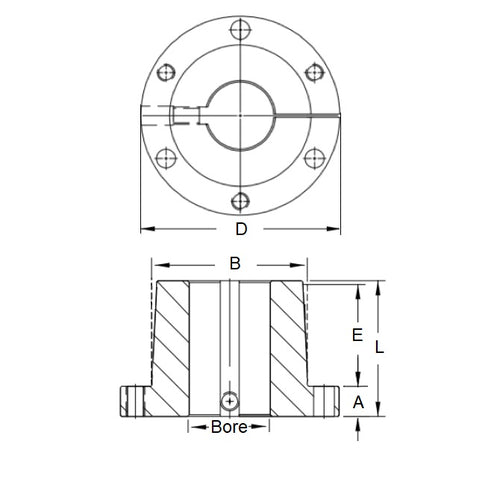

Product Data

  • Bore : 15.875 mm
    (Equiv. 0.625 in.)
  • Series SK
  • Flange OD (D) 98.43 mm
    (Equiv. 3.875 in.)
  • Bolt Circle Dia. 84.15 mm
  • Overall Length (L) 28.58 mm
  • Bush Length (E) 34.93 mm
  • Large End OD (B) 71.42 mm
  • Flange Thickness (A) 14.30 mm
  • Material Steel
Country of Origin: US

Product Compliance and Data

Additional Resources

    Cross References

    • 6086K512
    • Martin SKx5-8
    • SKx58
