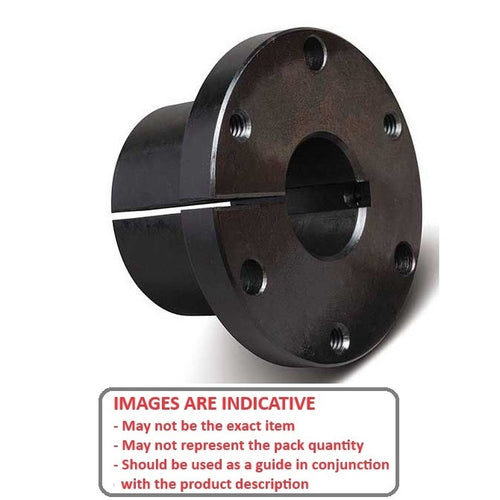

QD-SD-0159 - Datasheet

MBA

Category Information

Bushings - QD

QD Bushings. Used with QD type cast iron vee pulleys, timing pulleys, sprockets, poly vee pulleys and other parts designed specifically for use with a QD bushing

  • Quick Disconnect (QD) bushing is a power transmission component with a split taper design that provides a strong, secure clamp on a shaft, allowing for easy installation and removal of sprockets, pulleys, and sheaves.
  • Similar to a taperlock bush, but not interchangeable
  • QD bushings like taperlock bushings allow for use of a single stock pulley for many applications with different shaft sizes
  • Select the correct QD series to suit the pulley

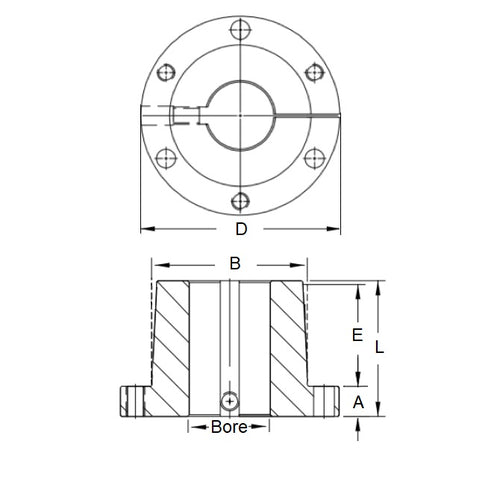

Product Data

  • Bore : 15.875 mm
    (Equiv. 0.625 in.)
  • Series SD
  • Flange OD (D) 80.98 mm
    (Equiv. 3.188 in.)
  • Bolt Circle Dia. 68.28 mm
  • Overall Length (L) 46.05 mm
  • Bush Length (E) 23.83 mm
  • Large End OD (B) 55.55 mm
  • Flange Thickness (A) 12.70 mm
  • Material Steel
Country of Origin: US

Product Compliance and Data

Additional Resources

    Cross References

    • 6086K412
    • Martin SDx5-8
    • SDx58
