QD-JA-0159 - Datasheet

MBA

Category Information

Bushings - QD

QD Bushings. Used with QD type cast iron vee pulleys, timing pulleys, sprockets, poly vee pulleys and other parts designed specifically for use with a QD bushing

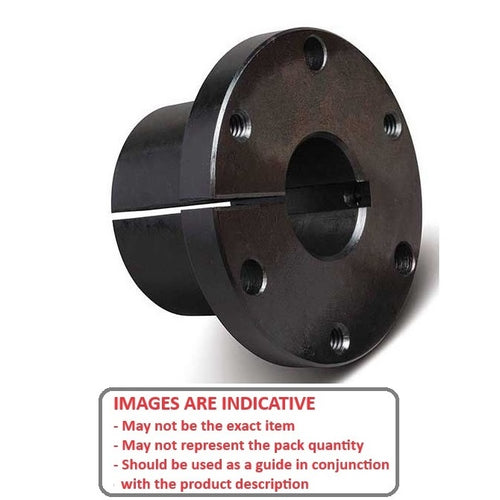

  • Quick Disconnect (QD) bushing is a power transmission component with a split taper design that provides a strong, secure clamp on a shaft, allowing for easy installation and removal of sprockets, pulleys, and sheaves.
  • Similar to a taperlock bush, but not interchangeable
  • QD bushings like taperlock bushings allow for use of a single stock pulley for many applications with different shaft sizes
  • Select the correct QD series to suit the pulley

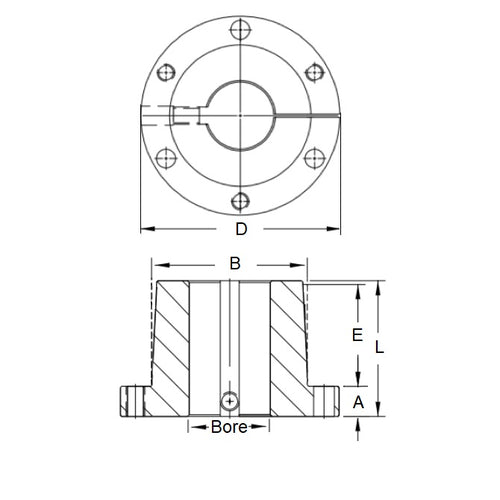

Product Data

  • Bore : 15.875 mm
    (Equiv. 0.625 in.)
  • Series JA
  • Flange OD (D) 50.50 mm
    (Equiv. 1.988 in.)
  • Bolt Circle Dia. 42.29 mm
  • Overall Length (L) 25.40 mm
  • Bush Length (E) 17.48 mm
  • Large End OD (B) 34.93 mm
  • Flange Thickness (A) 9.53 mm
  • Material Steel
Country of Origin: US

Product Compliance and Data

Additional Resources

    Cross References

    • 6086K112
    • Martin JAx5-8
    • JAx58
