CP-159K-159K-32-051-R-CG - Datasheet

MBA

Category Information

Couplings - Rigid - Set Screw

Set Screw Rigid Couplings. 0.35 to 5.1 Nm. Includes steel, stainless steel, brass and aluminium.

  • An expanded range may be available on special order. Please enquire.
  • Quality Class Precision: Bore Tolerance +0.013 / - 0.000 concentric within 0.0127mm T.I.R.
  • Quality Class Commercial: Bore Tolerance +0.051 / -0.000.

Product Data

  • Bore (b1) : 15.875 mm
    (Equiv. 0.625 in.)
  • Bore (b2) Keyed 15.875 mm
  • OD (D) 31.750 mm
    (Equiv. 1.25 in.)
  • Length (L) 50.800 mm
  • Bore Depth (B) Through Bore mm
  • Quality Class Commercial

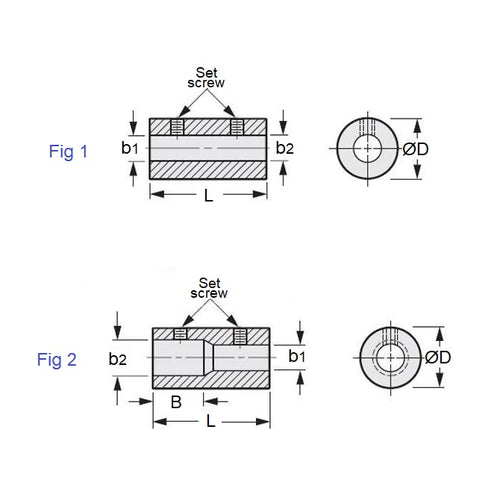

  • Figure Fig. 1
  • Material Steel
Country of Origin: US

Product Compliance and Data

Additional Resources

    Cross References

    • 6412K42
    • SC625
    • SC-625
