0R-0159-0381-ALCT-T30 - Datasheet
MBA
Category Information

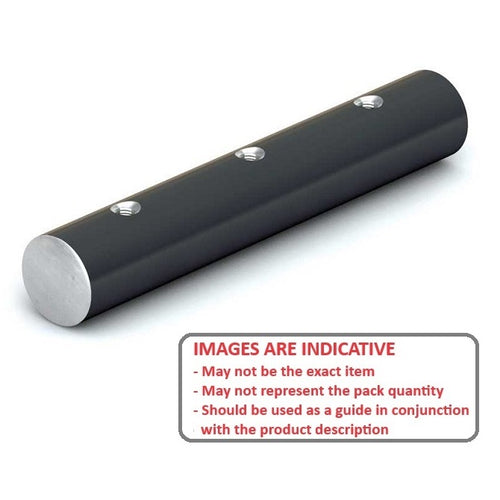

Shafting - Linear - Aluminium - Ceramic Coated - TappedTapped Ceramic Coated Aluminium Linear Shafting. Recommended for use with Frelon Gold linear bearings. Aluminium 6061-T6 with ceramic coated finish. Ceramic coat has rockwell hardness of 70C. No magnetic and vibration reseistant.
- Weld spatter, contaminants and paints will not stick.
- Do not use with ball bearings. Use with Frelon lined or similar plain bearings only.
- Shaft ends are not coated
Product Data
- Outside Diameter
:
15.875
mm
- 0.010 / - 0.030
(Equiv. 0.625 in.) - Length
381
mm

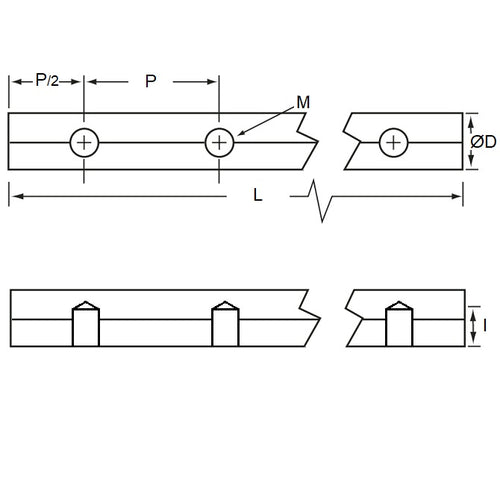

(Equiv. 15 in.) - Hole Spacing From End (A)
50.800
mm
(Equiv. 2 in.) - Hole Spacing (B) 101.6 mm
- Thread 8-32 UNC (4.17mm)
- Material Ceramic Coated Aluminium
Product Compliance and Data
Additional Resources
Cross References
- PBC-1099
- PBC1099
