0R-0159-1829-DT-S440-T30 - Datasheet

MBA

Category Information

Shafting - Pre Drilled and Tapped - Stainless Steel

Stainless Steel Pre Drilled and Tapped Shafting. For use with rail supports and open linear bearings

    Product Data

    • Diameter (D) : 15.875 mm - 0.010 / - 0.030
      (Equiv. 0.625 in.)
    • Length (L) 101.6 mm
      (Equiv. 4 in.)
    • Material 440C Case Hardened Stainless
    • Hole Pitch (P) 101.6
    • Surface Finish 0.30 um Microns
    • Hardness 60-65 Rockwell C
    • Ends Finished and Chamfered
    • Material Stainless Steel AISI 440C Carbon Steel Case Hardened
    Country of Origin: US

    Product Compliance and Data

    Additional Resources

    Cross References

    • TLM1836
    • TLM-1836
    View full details

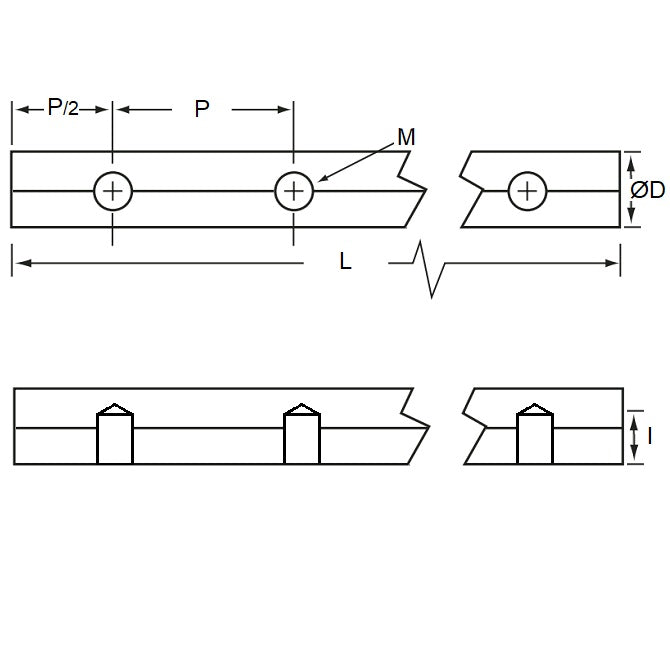

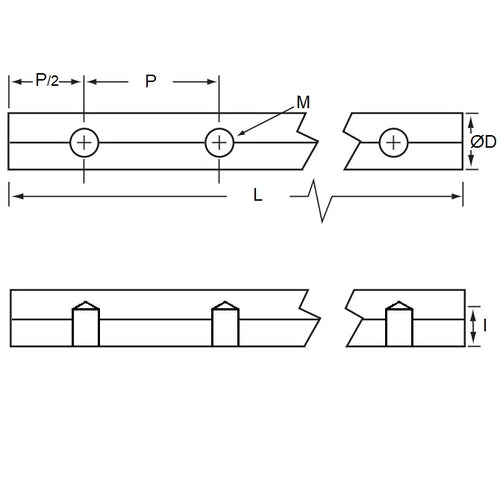

    0R-0159-1829-DT-S440-T30Diagram0R-0159-1829-DT-S440-T30Image
