TP-151-1524-S4-EE - Datasheet
MBA
Category Information

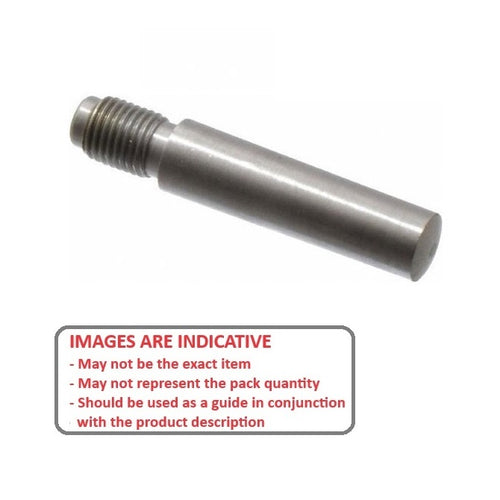

Pins - Taper Imperial - Extractable - External Thread - Stainless SteelStainless Steel External Thread Extractable Taper Imperial Pins. Imperial Sizes Tapered 1:48 (1/4 in. per foot). Standard sizes numbers 0 to 14.
- An expanded range may be available on special order. Please enquire.
- Threaded externally for easy extraction.

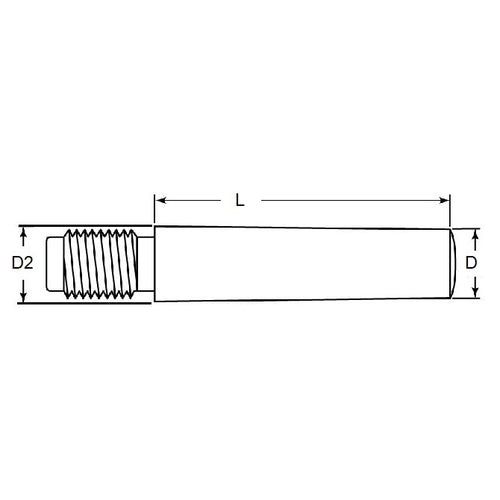

Product Data
- Nom. Large End Diameter (D2) : 15.08 mm
- Pin Length (L) 152.40 mm
- Nom. Small End Diameter (D) 11.91 mm
- Pin Number 9
- Thread Size 1/2 UNF
- Material Stainless Steel 304 (Similar to A2 or 18-8) HRB80
Product Compliance and Data
Additional Resources
Cross References
- 92284A522
- Huyett® TPTS-09-6000
- NoCor® TPTS-09-6000
- TPTS096000
