TP-151-1270-S4-EE - Datasheet
MBA
Category Information

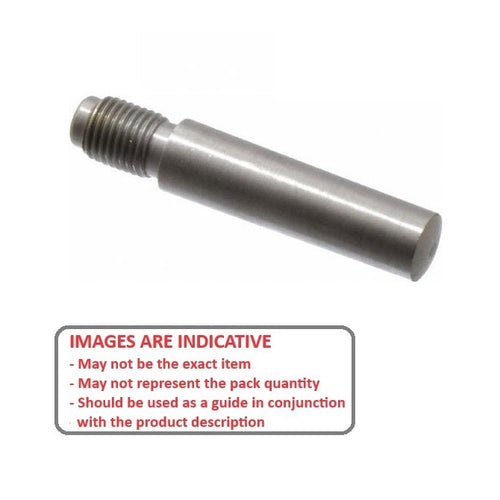

Pins - Taper Imperial - Extractable - External Thread - Stainless SteelStainless Steel External Thread Extractable Taper Imperial Pins. Imperial Sizes Tapered 1:48 (1/4 in. per foot). Standard sizes numbers 0 to 14.
- An expanded range may be available on special order. Please enquire.
- Threaded externally for easy extraction.
Product Data

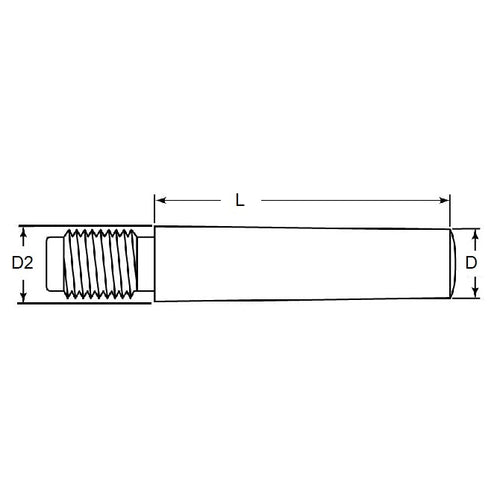

- Nom. Large End Diameter (D2)
:
15.08
mm
(Equiv. 0.594 in.) - Pin Length (L)
127.00
mm
(Equiv. 5 in.) - Nom. Small End Diameter (D)
12.44
mm
(Equiv. 0.49 in.) - Pin Number 9
- Thread Size 1/2 UNF
- Material Stainless Steel 304 (Similar to A2, 18-8) HRB80
Product Compliance and Data
Additional Resources
Cross References
- 92284A521
- NoCor TPTS-09-5000
- TPTS095000
