Miniature Bearings Australia
CCE-01400-S15 - Datasheet
MBA
Category Information

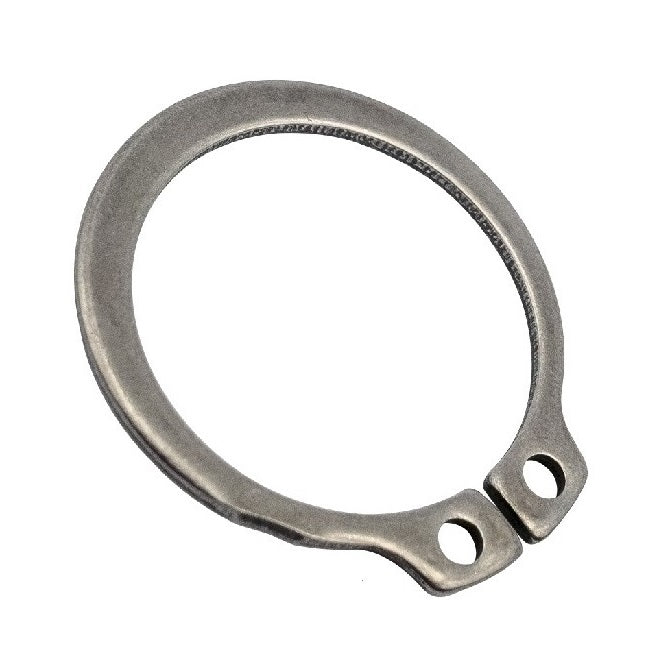

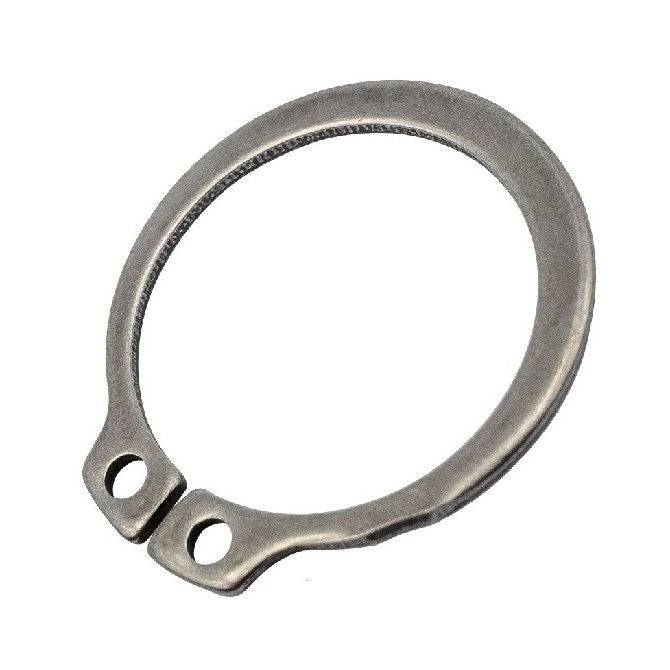

Retaining Rings - External - Circlips - Standard - Stainless SteelStainless Steel Standard Circlips External Retaining Rings. Imperial and metric DIN471 / D1400 / N1400 / D1460. PH15-7 Mo Stainless Steel. Retaining rings. Snap Rings (USA).
- An expanded range may be available on special order. Please enquire.
- PH15-7 Mo Stainless Steel.
Product Data
- Shaft Diameter (Ds)
:
14.00
mm
(Equiv. 0.551 in.) - Clip Thickness (T)
1.00
mm
+ 0.00 / - 0.11
(Equiv. 0.039 in.) - Groove Dia. (Dg)
13.40
mm
+ 0.00 / - 0.06
(Equiv. 0.528 in.) - Approx. Loose Circlip ID (A) 12.90 mm
- Groove Width (W) 1.10 mm
- Clearance on Shaft (C1) 21.40 mm
- Min. Lug Diameter (h) 1.70 mm
- Standard DIN471
- Material Stainless Steel Grade PH15-7 Mo
Product Compliance and Data
Additional Resources
Cross References
- Ellison 471-014-SS
- 90967A175
- Seeger A-014-SS
- Seeger A14X1-411
- Bossard BN818-014-SS
- Waldes D1400-014-SS
- NoCor DSH-014-SS
- Rotor Clip DSH-014-SS
- DSH014SS
- 1400-0140KSF
- 14000140KSF
- D1400-0140KSF
- D14000140KSF
- D1400014SS
- A14X1411
- A014SS
- 471014SS
- BN818014SS
