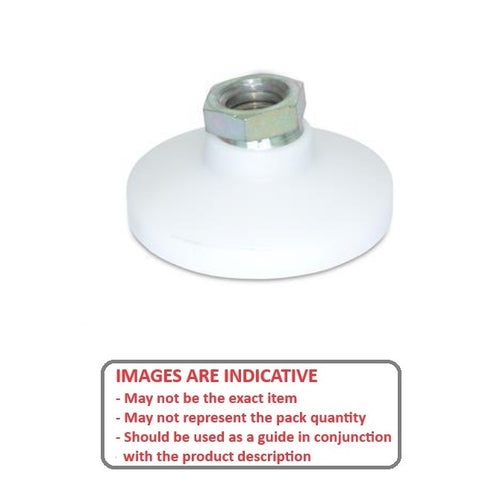

MSF-095C-S3AP - Datasheet
MBA
Category Information
Mounts - Levelling Socket - Swivel - 303 Stainless Acetal Base303 Stainless Acetal Base Swivel Levelling Socket Mounts. Levelling adjusters. 15o swivel off centreline to adjust to uneven surfaces and level machine tools, electronic racks and benches.
- An expanded range may be available on special order. Please enquire.
Product Data
- Thread Size (A) : 3/8-16 UNC (9.53mm)
- Base Diameter (D)
31.8
mm
(Equiv. 1.252 in.) - Foot Height (C)
22.2
mm
(Equiv. 0.874 in.) - Min. Thread Depth 9.7 mm
- Base Height (E) 4.75 mm
- Load Rating 140 Kg
- Pad Material Delrin
- Hex Flats (B) 15.88 mm
- Material Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
Product Compliance and Data
Additional Resources
Cross References
- MSF0140095C36
- LD0SS
- LD-0SS
