MLM-064C-038-C-LDRP - Datasheet
MBA
Category Information

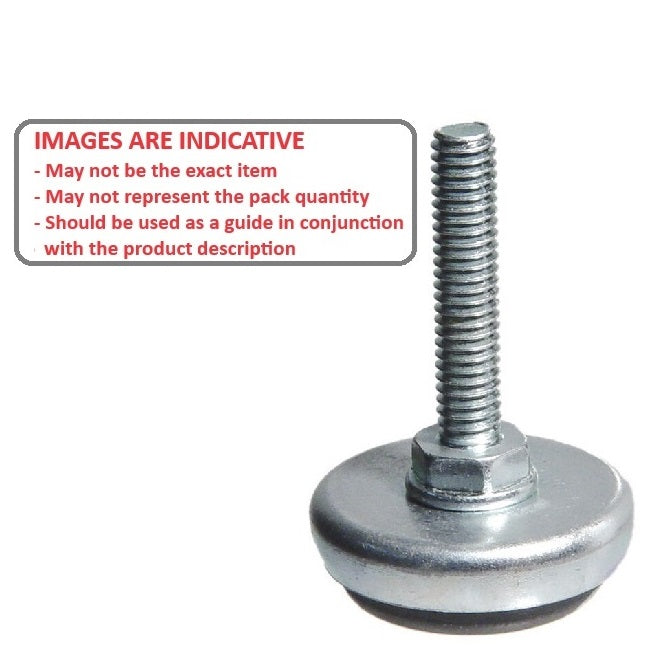

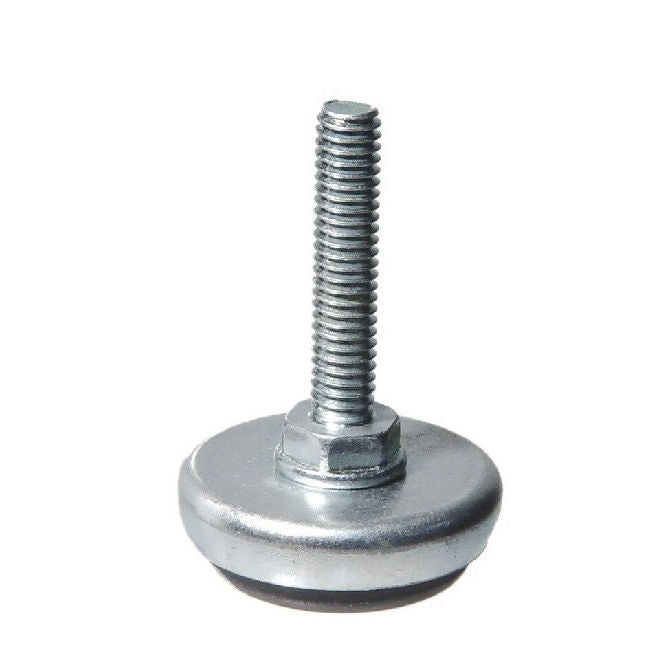

Mounts - Levelling Studded - Light Duty - Rubber PaddedRubber Padded Light Duty Levelling Studded Mounts. Levelling adjusters. For light duty levelling applications. Can be used on furniture, light duty machines, tables, cabinets, light weight equipment etc.
- An expanded range may be available on special order. Please enquire.
- For non skid applications
Product Data

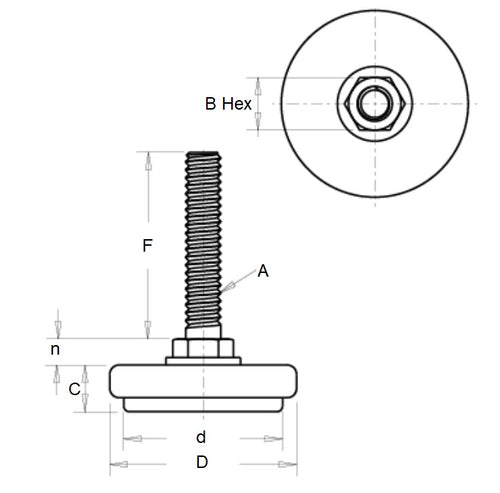

- Thread Size (A) : 1/4-20 UNC (6.35mm)
- Base Diameter (D)
38.1
mm
(Equiv. 1.5 in.) - Foot Height (C)
12.7
mm
(Equiv. 0.5 in.) - Thread Length (F) 38.1 mm
- Base Height (E) 12.7 mm
- Overall Height 50.8 mm
- Load Rating 140 Kg
- Mount Diameter (C) 38.10
- Pad Diameter (d) 30.99 mm
- Pad Material Elastomer
- Nut width (n) 12.70 mm
- Material Zinc Plated Steel
Product Compliance and Data
Additional Resources
Cross References
- VE700
- VE-700
- MLM0140064CR
