P-050A-014-250FF-AL-N-000 - Datasheet
MBA
Category Information

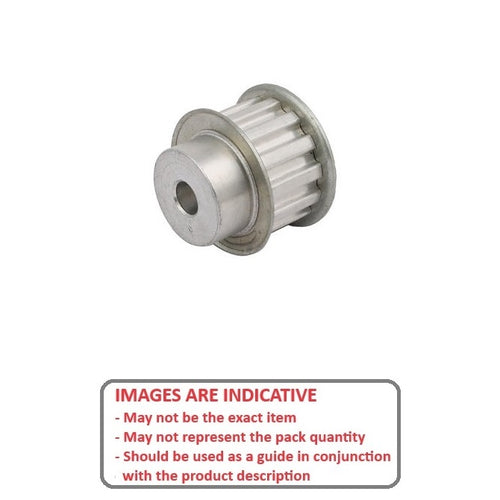

Pulleys - Metric Timing - 5.000mm Pitch - AT5 - 25mm Wide25mm Wide AT5 5.000mm Pitch Metric Timing Pulleys. Timing pulleys to suit AT5 Series belts
- Timing pulleys combined with timing belts, provide power transmission without slippage.
- Timing pulleys are toothed pulleys used with timing belts to synchronize the movement of different mechanical components, ensuring precise timing and coordination.
- Some uses for timing pulleys include 3D printers, CNC machines, robotics and automation components, textile machinery, office equipment such as scanners and copiers, and medical devices requiring precise movement control.
- Aluminium Alloy
- Steel Flanges
- Hub is unthreaded, you will need to drill and tap with your required locking screw size
Product Data
- Number of Teeth : 14
- Max Belt Width
25.00
mm
(Equiv. 0.984 in.) - Bore (d) No Bore 0 mm
- Bore Type Plain
- Locking Type None

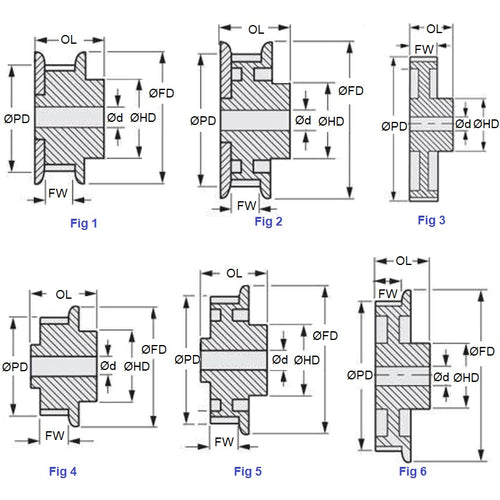

- Type 2
- Pitch Dia. (PD) 22.27 mm
- Flange Diameter (FD) 25.0 mm
- Overall Length 36.0 mm
- Hub Diameter (HD) 13.0
- Material Aluminium
Product Compliance and Data
Additional Resources
Cross References
- 3709N58
- Gates 38AT5-14-2
- 36AT5142
- 36AT5-14-2
- 38AT5142
- 36AT5/14-2
- 36AT5/142
