CCE-01300-S15 - Datasheet
MBA
Category Information

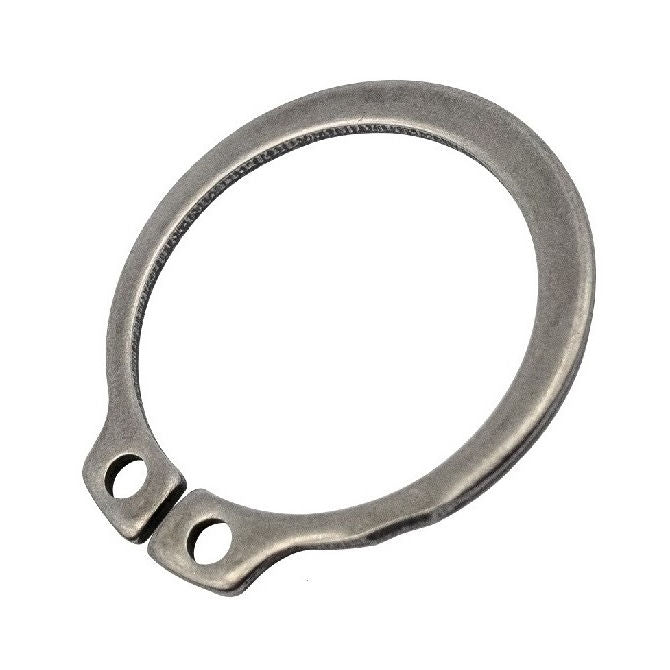

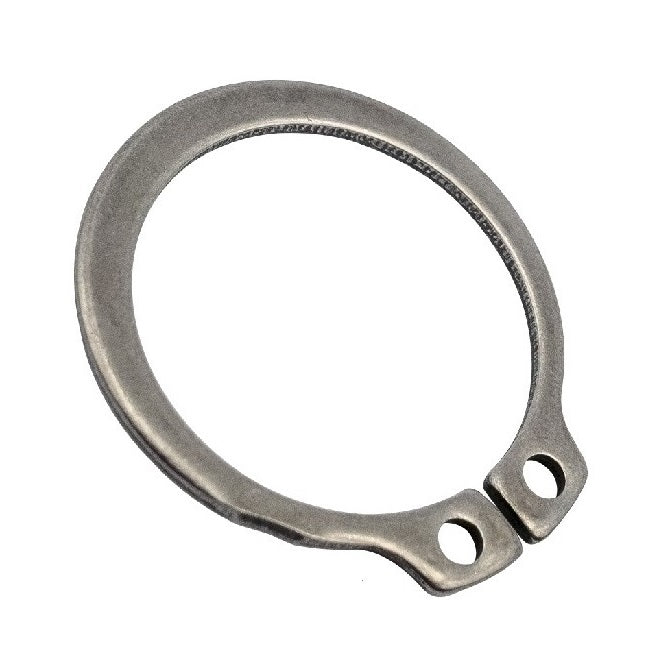

Retaining Rings - External - Circlips - Standard - Stainless SteelStainless Steel Standard Circlips External Retaining Rings. Imperial and metric DIN471 / D1400 / N1400 / D1460. PH15-7 Mo Stainless Steel. Retaining rings. Snap Rings (USA).
- An expanded range may be available on special order. Please enquire.
- PH15-7 Mo Stainless Steel.
Product Data
- Shaft Diameter (Ds)
:
13.00
mm
(Equiv. 0.512 in.) - Clip Thickness (T)
1.00
mm
+ 0.00 / - 0.11
(Equiv. 0.039 in.) - Groove Dia. (Dg)
12.40
mm
+ 0.00 / - 0.06
(Equiv. 0.488 in.) - Approx. Loose Circlip ID (A) 11.90 mm
- Groove Width (W) 1.10 mm
- Clearance on Shaft (C1) 20.20 mm
- Clearance in Groove (C1) 19.20 mm
- Min. Lug Diameter (h) 1.70 mm
- Min. Extension (n) 0.90
- Standard DIN471
- Material Stainless Steel Grade PH15-7 Mo
Product Compliance and Data
Additional Resources
Cross References
- Ellison 471-013-SS
- 90967A170
- Seeger A-013-SS
- Seeger A13X1-411
- Bossard BN818-013-SS
- Waldes D1400-013-SS
- NoCor DSH-013-SS
- Rotor Clip DSH-013-SS
- DSH013SS
- 14000130KSF
- 1400-0130KSF
- D1400013SS
- D1400-0130KSF
- D14000130KSF
- A013SS
- A13X1411
- 471013SS
- BN818013SS
