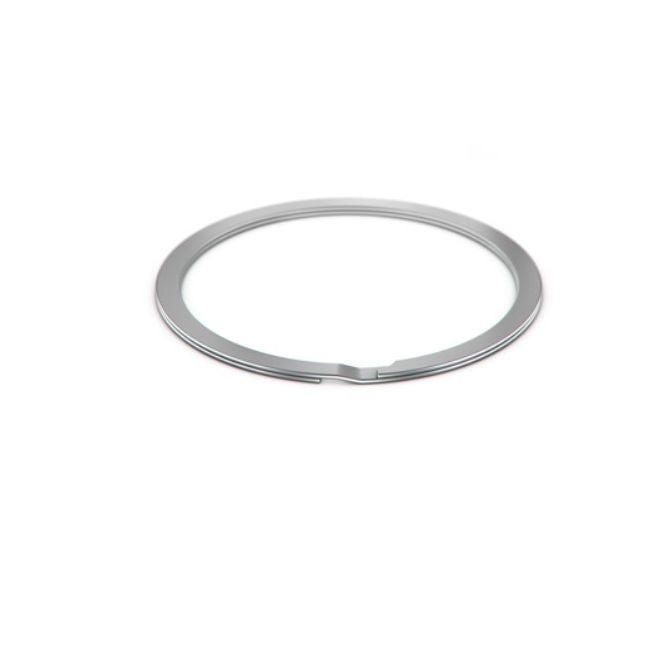

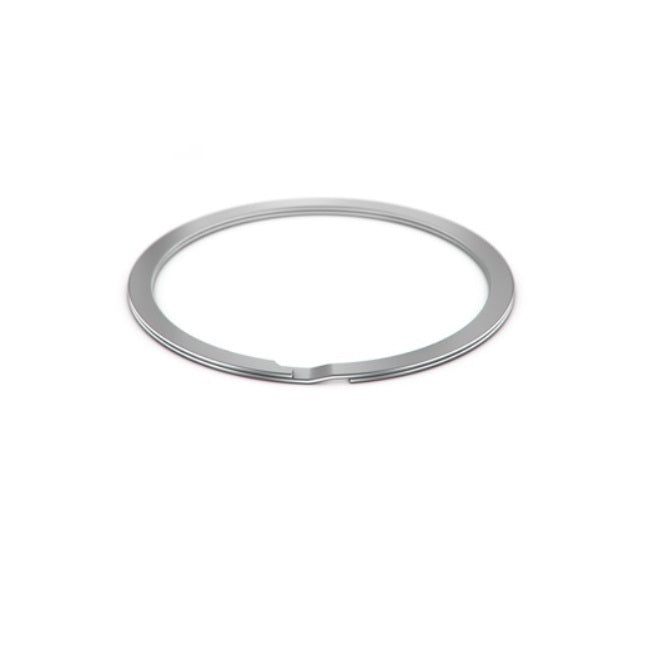

Retaining Rings - External - Spiral Rings - Medium Duty - Carbon SteelCarbon Steel Medium Duty Spiral Rings External Retaining Rings. AE / WS / AS3218 / RS / MIL-R-27426A1 - Spring Steel
- An expanded range may be available on special order. Please enquire.
- Popular series that will accommodate light and medium bearing series thrust loads.
- Available in military and aerospace specifications.
- Equivalent to Associated Spring: AE, Smalley: WS, Spirolox and Ramsey: RS, Aerospace AS3218, MIL-R-27426A1
Product Data
- Shaft Diameter (Ds)
:
133.35
mm
(Equiv. 5.25 in.) - Clip Thickness (T)
1.83
mm
+/- 0.10
(Equiv. 0.072 in.) - Groove Dia. (Dg)
129.72
mm
(Equiv. 5.107 in.) - Approx. Loose Circlip ID (A) 125.35 mm + 0.00 / - 1.27
- Radial Wall (S) min/max 6.35 mm +/- 0.13
- Groove Width (W) 2.07 mm +/- 0.18
- Approx. Loose Clip OD 138.05 +/- 0.06
- Groove Depth (d) 1.83
- Material Carbon Spring Steel
Product Compliance and Data
Additional Resources
Cross References
- Smalley RS-525
- Spirolox RS-525
- Smalley WS-525
- WS525
- RS525
