FK206 - Datasheet
MBA
Category Information

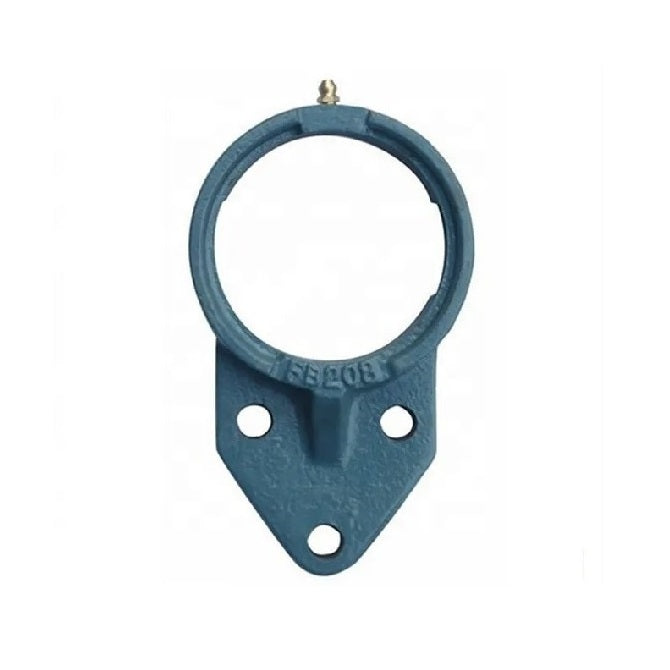

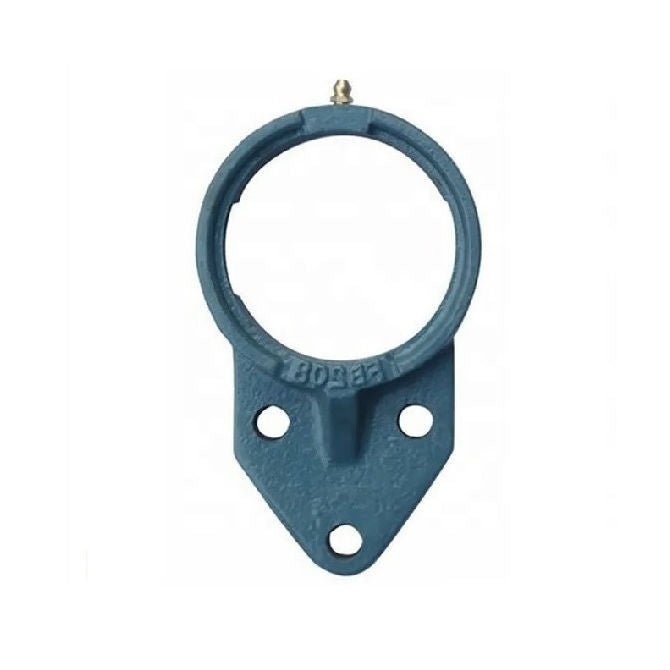

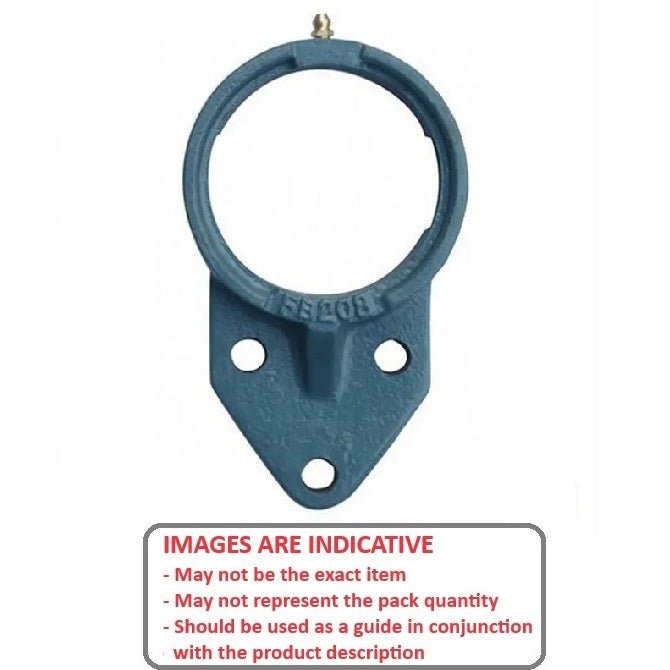

Housings - Flanged - Offset Cast IronOffset Cast Iron Flanged Housings. Lubrication Groove.
- An expanded range may be available on special order. Please enquire.
- Bearings sold separately.
- Larger sizes available on request.
- Use with steel bearing inserts for cast iron housings.

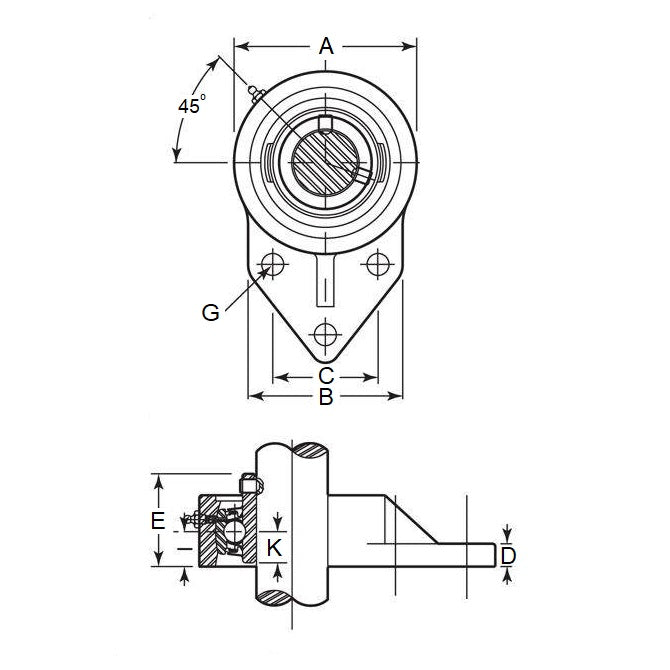

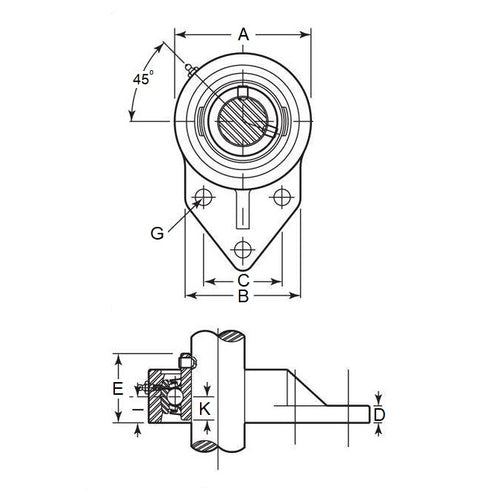

Product Data
- Height (H)
:
130.000
mm
(Equiv. 5.118 in.) - Length (L)
78.000
mm
(Equiv. 3.071 in.) - Width - Assembled (W)
40.200
mm
(Equiv. 1.583 in.) - Bolt Hole Centres (J) 40.000 mm
- Base Width (A1) 13.000 mm
- Bearing Width (B) 38.100 mm
- To Suit Bearing UC206
- Bolt Hole Size (s) 10.000 mm
- Offset Width (Ow) 65.000 mm
- Material Cast Iron
Product Compliance and Data
Additional Resources
Cross References
- Nachi FK206J
