GR-V8-32-1219-19-C - Datasheet
MBA
Category Information

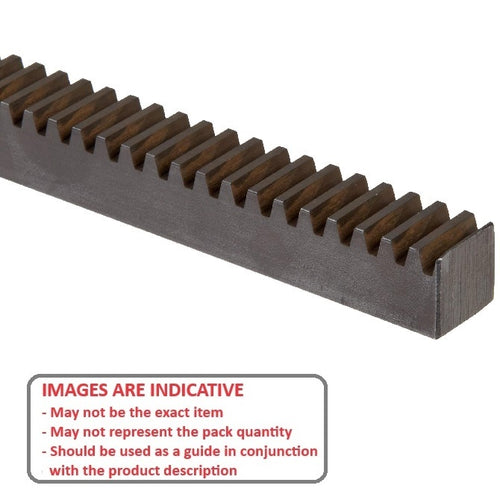

Gears - Rack - Imperial - 8DP Steel8DP Steel Imperial Rack Gears. 14.5 Degree Pressure Angle. Unhardened Steel. DP stands for Diametrical Pitch imperial sizes.
- Be sure to match the pitch type and tooth angle when selecting rack and spur gears.
- An expanded range may be available on special order. Please enquire.
- Lengths longer than 1mtr can only be shipped internationally using Express not post. Please do not select post at checkout for long lengths.
- 8 DP. Approx 9.98mm between teeth.
Product Data
- Length (L)
:
1219.2
mm
(Equiv. 48 in.) - Face Width (fw)
31.75
mm
(Equiv. 1.25 in.) - Height (h)
19.050
mm
(Equiv. 0.75 in.) - Pitch Type 8DP - 14.5 PA
- Pitch Height (ph) 15.875 mm
- Pressure Angle 14.5 °
- Mounting Holes None
- Shape Rectangular
- Material Steel
Product Compliance and Data
Additional Resources
Cross References
- BOSTON L518-4
- L5184
- GE-0800
- GE0800
