GR-V10-25-1219-16-C - Datasheet
MBA
Category Information

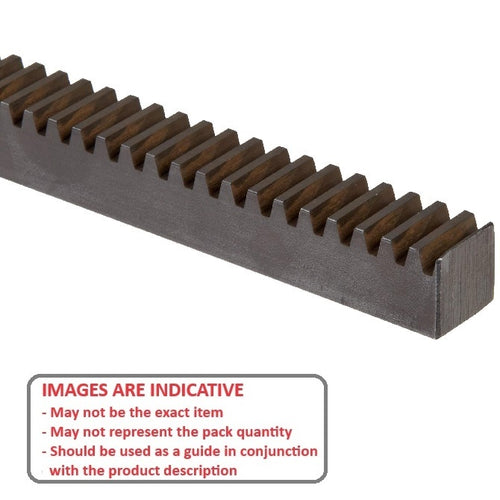

Gears - Rack - Imperial - 10DP10DP Imperial Rack Gears. 14.5 Degree Pressure Angle. Unhardened Steel. DP stands for Diametrical Pitch imperial sizes.
- Be sure to match the pitch type and tooth angle when selecting rack and spur gears.
- An expanded range may be available on special order. Please enquire.
- Lengths longer than 1mtr can only be shipped internationally using Express not post. Please do not select post at checkout for long lengths.
- 10 DP. Approx 7.98mm between teeth.
Product Data
- Length (L)
:
1219.2
mm
(Equiv. 48 in.) - Face Width (fw)
25.4
mm
(Equiv. 1 in.) - Height (h)
15.875
mm
(Equiv. 0.625 in.) - Pitch Type 10DP - 14.5 PA
- Pitch Height (ph) 13.335 mm
- Pressure Angle 14.5 °
- Mounting Holes None
- Shape Rectangular
- Material Steel
Product Compliance and Data
Additional Resources
Cross References
- BOSTON L516-4
- L5164
- GE1000
- GE-1000
