CCE-12000-S15 - Datasheet

MBA

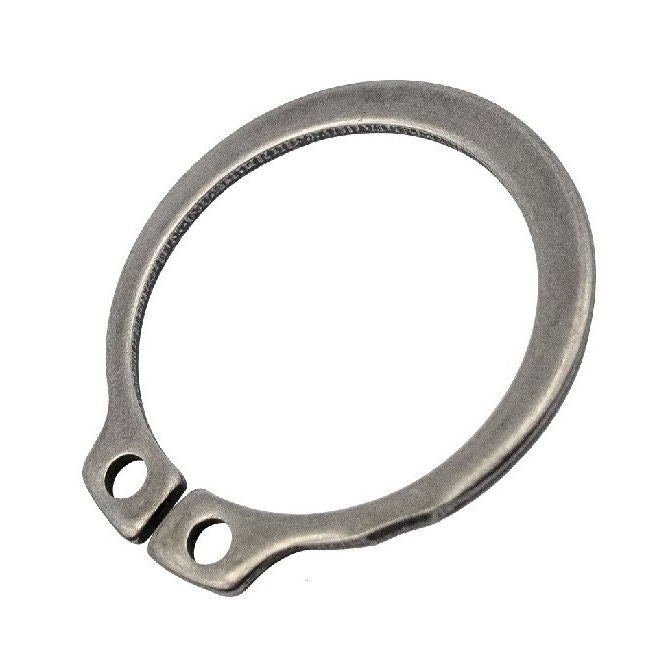

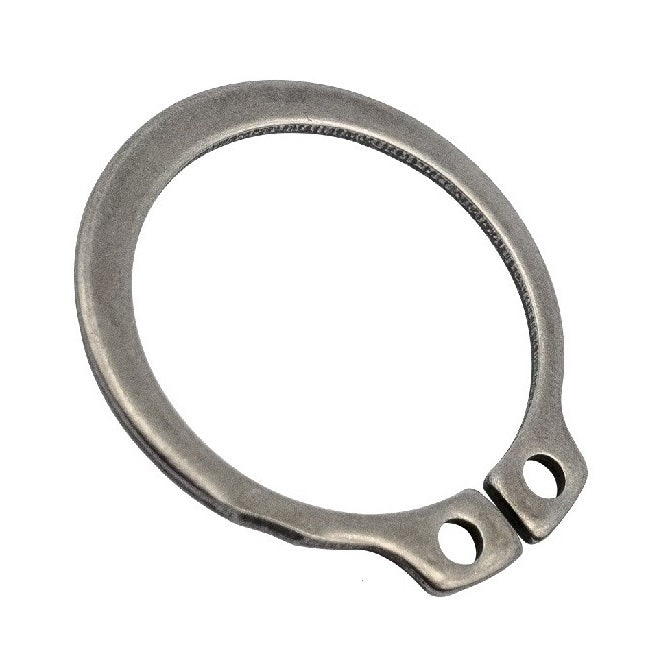

Product Data

Deleted Item. Available while stocks last.

Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

• Shaft Diameter (Ds) : 120.00 mm
  (Equiv. 4.724 in.)
• Clip Thickness (T) 4.00 mm _{+ 0.00 / - 0.54}
  (Equiv. 0.157 in.)
• Groove Dia. (Dg) 116.00 mm _{+ 0.00 / - 0.10}
  (Equiv. 4.567 in.)
• Approx. Loose Circlip ID (A) 113.00 mm
• Groove Width (W) 4.15 mm
• Clearance on Shaft (C1) 138.00 mm
• Clearance in Groove (C1) 143.10 mm
• Min. Lug Diameter (h) 3.50 mm
• Min. Extension (n) 6.00
• Standard DIN471
• Material Stainless Steel Grade PH15-7 Mo

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC

Additional Resources

• Anderton and Seeger Cross Reference PDF

• Circlips PDF Catalogue

• Assortment Kits


• Measuring Small Parts
• Metalworking Resource Guide

• Circlips & E-Clips Catalogue
• Snap Rings Catalogue
• Stainless Steel Retaining Ring Material

Cross References

• Seeger A120S-S
• Seeger A120X4-411
• Seeger NZT.A120S-S
• 14001200KSF
• 1400-1200KSF
• D14001200KSF
• D1400-1200KSF
• A120X4411
• A120SS
• NZTA120SS
