CCI-12065-CZY - Datasheet
MBA
Category Information

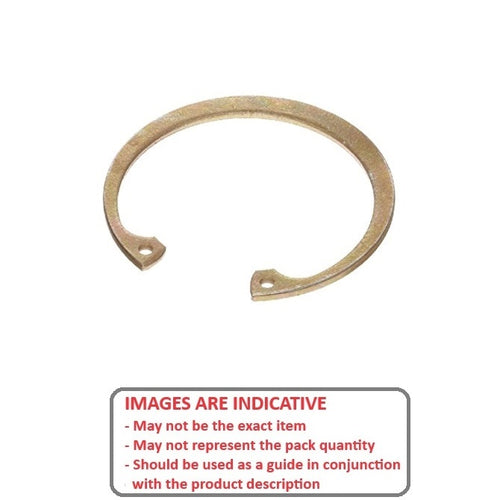

Retaining Rings - Internal - Circlips - Standard - Zinc PlatedZinc Plated Standard Circlips Internal Retaining Rings. Imperial and metric DIN471 and 472 / D1300 / N1300 / Seeger J and JS. Retaining rings. Snap Rings (USA).
- An expanded range may be available on special order. Please enquire.
- Zinc plated carbon steel
- Tolerances on request.
Product Data
- Housing Bore (B)
:
120.65
mm
(Equiv. 4.75 in.) - Clip Thickness (T)
2.77
mm
+/- 0.152
(Equiv. 0.109 in.) - Groove Dia. (Dg)
126.21
mm
+ 0.00 / - 0.10
(Equiv. 4.969 in.) - Approx. Loose Circlip OD (Dr) 129.03 mm + 1.65 / - 1.65
- Groove Width (W) 3.05 mm + 0.13 / - 0.00
- Standard MIL-16625
- Material Carbon Steel Zinc Plated
Product Compliance and Data
Additional Resources
Cross References
- 98409A355
- NoCor HO-475-ZD
- HO475ZD
- N1300-0475AZD
- N13000475AZD
