CCE-12065-S15 - Datasheet

MBA

Category Information

Retaining Rings - External - Circlips - Standard - Stainless Steel

Stainless Steel Standard Circlips External Retaining Rings. Imperial and metric DIN471 / D1400 / N1400 / D1460. PH15-7 Mo Stainless Steel. Retaining rings. Snap Rings (USA).

  • An expanded range may be available on special order. Please enquire.
  • PH15-7 Mo Stainless Steel.

Product Data

  • Shaft Diameter (Ds) : 120.65 mm
    (Equiv. 4.75 in.)
  • Clip Thickness (T) 2.77 mm +/- 0.152
    (Equiv. 0.109 in.)
  • Groove Dia. (Dg) 115.57 mm +/- 0.076
    (Equiv. 4.55 in.)
  • Approx. Loose Circlip ID (A) 113.20 mm
  • Groove Width (W) 3.10 mm
  • Standard MIL-16624
  • Material Stainless Steel Grade PH15-7 Mo
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • 91590A265
  • NoCor SH-475-SS
  • SH475SS
  • N14000475KSF
  • N1400-0475KSF
View full details

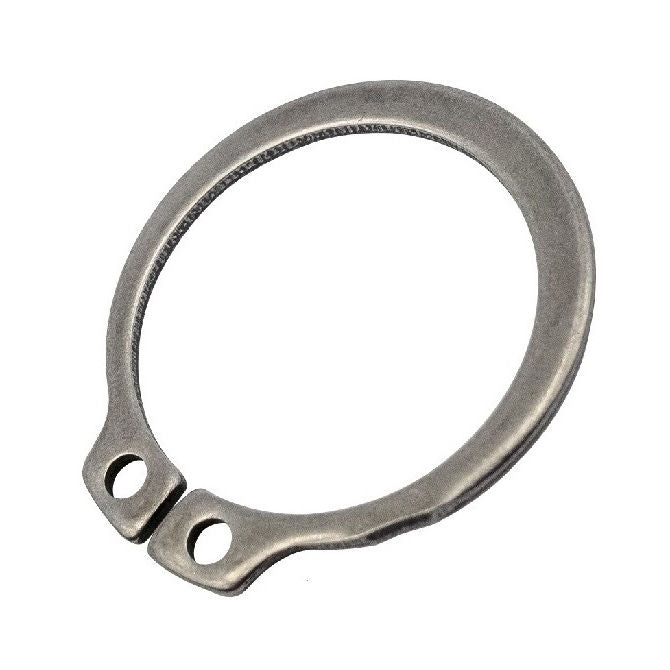

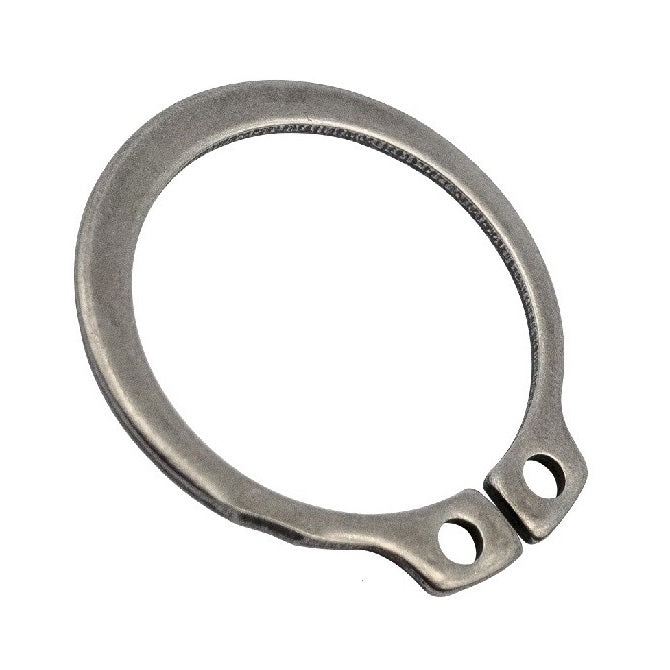

CCE-12065-S15DiagramCCE-12065-S15Image
