CS-1270-9144-12-M - Datasheet
MBA
Category Information

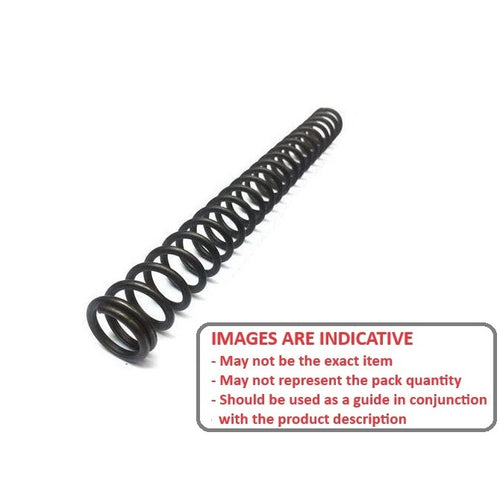

Springs - Compression - Music WireMusic Wire Compression Springs. Carbon spring steel selection. Standard springs may or may not be suplied with ground flush ends.
- Helical coil spring designed to resist compressive forces, meaning it shortens in length when pushed or squeezed.
- Used in a wide range of applications, such as pens, door hardware, machinery in automotive, aerospace, and manufacturing industries.
- This category includes short and long lengths.
- If the end type is important to your application please contact us for more information or a special quote.
Product Data

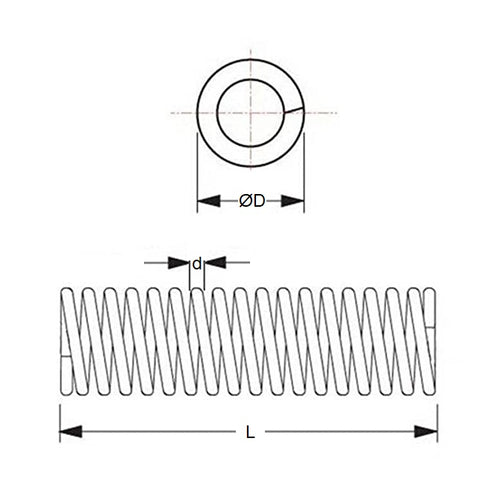

- Spring OD (D0) : 12.70 mm
- Free Length (L0) 914 mm
- Wire Diameter (d) 1.22 mm
- Rate (P/f) 2.6 N/mm
- Approx. ID 10.3 mm
- End Type Closed
- Material Music Wire
Product Compliance and Data
Additional Resources
Cross References
- 9662K22
- Reid Tool® S-213
- S213
