BLP-127-0762-CZ - Datasheet
MBA
Category Information

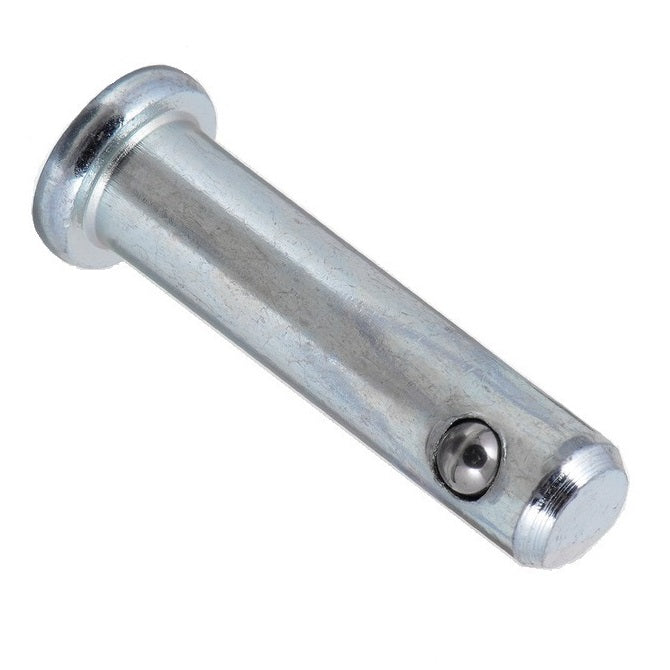

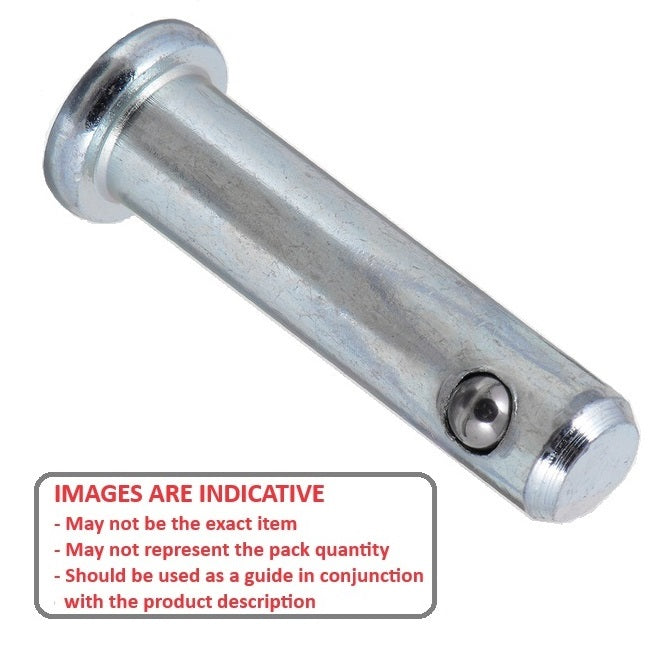

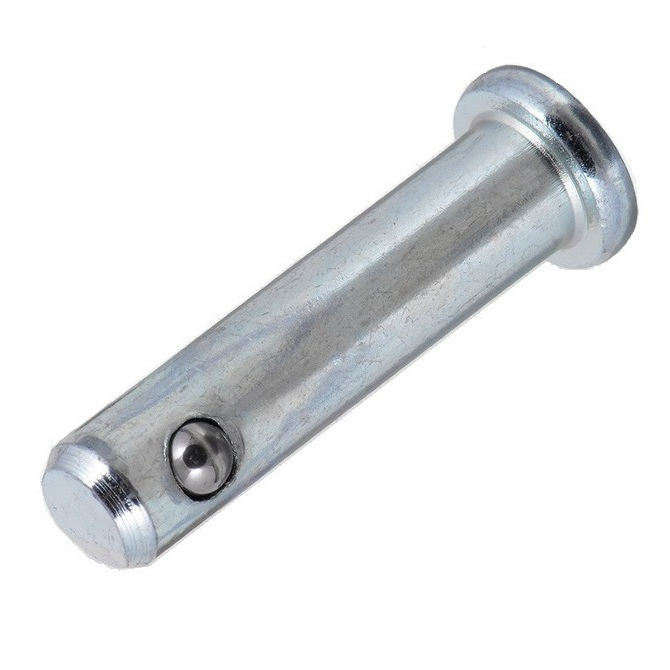

Pins - Clevis - Self Locking Zinc PlatedSelf Locking Zinc Plated Clevis Pins. Inexpensive ball lock pin type. No need for cotter pins.
- Self locking and reusable with a spring loaded ball lock
- Zinc plated low carbon steel with stainless steel ball
Product Data

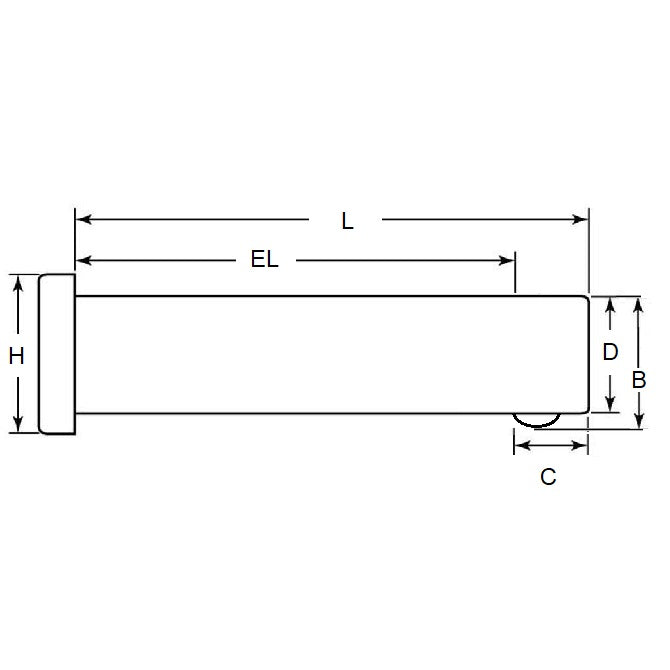

- Nominal Pin Diameter (A)
:
12.70
mm
- 0.10 / - 0.23
(Equiv. 0.5 in.) - Grip Length (EL)
76.20
mm
+ 0.51 / - 0.00
(Equiv. 3 in.) - Nom. Length (L)
88.90
mm
+ 0.51 / - 0.00
(Equiv. 3.5 in.) - Locking Ball to End (C) 12.7 mm
- Open Ball Distance (B) 1.27 to 1.5 mm
- Material Zinc Plated Low Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- 90156A399
- NoCor CLPCZ-0500-3500
- CLP-1235
- CLPCZ05003500
- CLP1235
- BLP1270762Z
