BLB-01270-00600-SUJ - Datasheet
MBA
Category Information

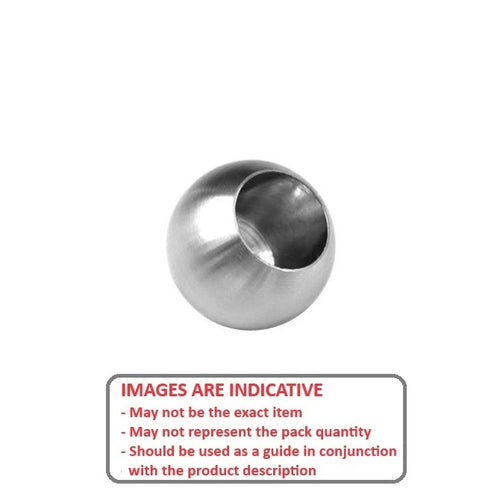

Balls - Bored - SteelSteel Bored Balls. Similr to the style used in steel rod ends.
- These bored balls are similar to the style of ball often found in a rod end or a spherical plain bearing.
- Used in machinery for applications such as pivots, in industries that include food processing, medical supplies, and general parts production.
- Hardness: 58-64 Rc.
- Material: SUJ-2.
Product Data
- Diameter (D)
:
12.700
mm
(Equiv. 0.5 in.) - Bore (B)
6.000
mm
+ 0.012 / - 0.0
(Equiv. 0.236 in.) - Width (W)
9.000
mm
(Equiv. 0.354 in.) - Flat Diameter (d1) 8.960 mm
- Chamfer (C) 0.3X45 mm
- Material Chrome Steel
Product Compliance and Data
Additional Resources
Cross References
- MTR GR-6
- KWK SS-6
- SS6
- GR6
