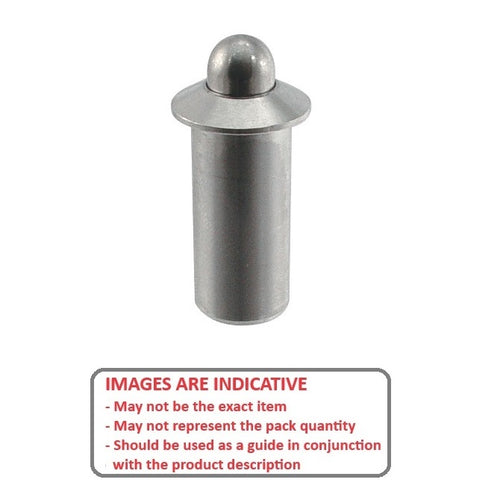

PLSP-127-279-S3-080 - Datasheet

MBA

Product Data

• Body Diameter (A) : 12.70 mm _{+ 0.1 / - 0.0}
  (Equiv. 0.5 in.)
• Body Length (B) 27.9 mm
  (Equiv. 1.098 in.)
• Initial Pressure (F1) 35.6 N
• Final Pressure (F2) 80.1 N
• Tip Diameter (D) 8.4 mm
• Tip Length (C) 6.4 mm
• Drive Push Fit
• Material Stainless Steel

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC

Additional Resources

• Threaded Ball Plungers

• Push Fit Ball Plungers


• Measuring Small Parts
• Metalworking Resource Guide

Cross References

• 8682A74
• SPFP60
• SPFP-60
