BLP-127-0127-CZ - Datasheet

MBA

Product Data

Deleted Item. Available while stocks last.

Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

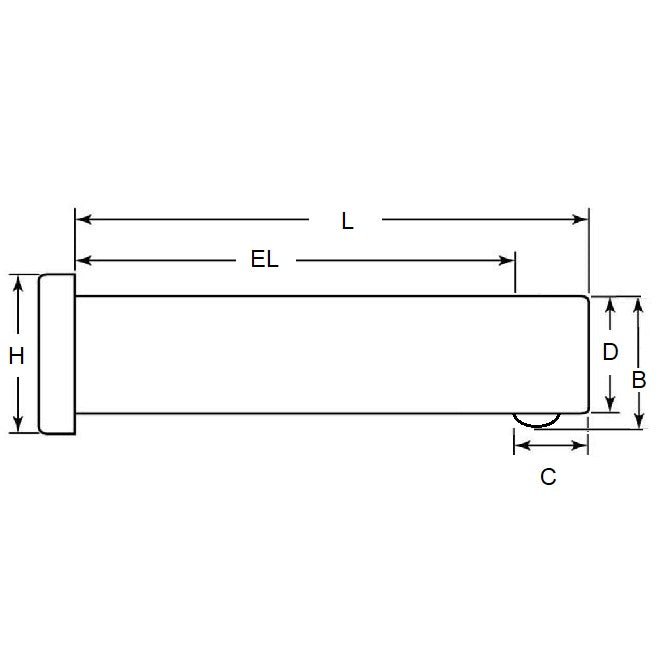

• Nominal Pin Diameter (A) : 12.70 mm _{- 0.10 / - 0.23}
  (Equiv. 0.5 in.)
• Grip Length (EL) 12.70 mm _{+ 0.51 / - 0.00}
  (Equiv. 0.5 in.)
• Nom. Length (L) 25.40 mm _{+ 0.51 / - 0.00}
  (Equiv. 1 in.)
• Locking Ball to End (C) 12.7 mm
• Open Ball Distance (B) 1.27 to 1.5 mm
• Material Zinc Plated Low Carbon Steel

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC

Additional Resources

• Master Pins Catalogue PDF

• Assortment Kits


• Measuring Small Parts
• Metalworking Resource Guide

Cross References

• NoCor CLPCZ-0500-1000
• CLP-1230
• CLPCZ05001000
• CLP1230
• BLP1270127Z
