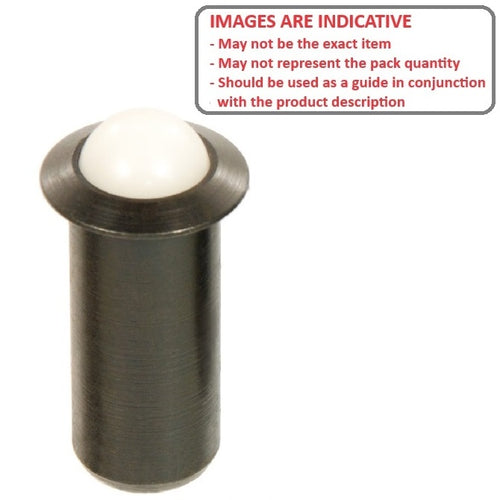

PLBP-127-279-CN-080 - Datasheet

MBA

Product Data

• Body Diameter (D) : 12.70 mm _{+ 0.1 / - 0.0}
  (Equiv. 0.5 in.)
• Length (L) 27.9 mm
  (Equiv. 1.098 in.)
• Initial Pressure (F1) 35.6 N
• Final Pressure (F2) 80.1 N
• Ball Diameter (D1) 11.1 mm
• Ball Height (H) 4.1 mm
• Shoulder Diameter (S) 17.5 mm
• 17.5
• Material Nylon (Polyamide 6/6)

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC

Additional Resources

• Spring Plungers

• Threaded Ball Plungers


• Measuring Small Parts
• Metalworking Resource Guide

Cross References

• 8483A56
• PFB-160
• PFB160
