Miniature Bearings Australia
REM-127-L-CB - Datasheet
MBA
Category Information

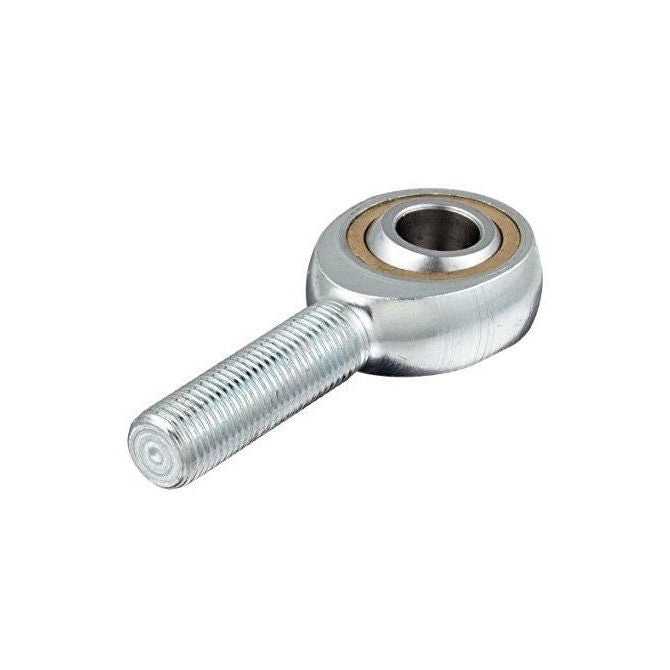

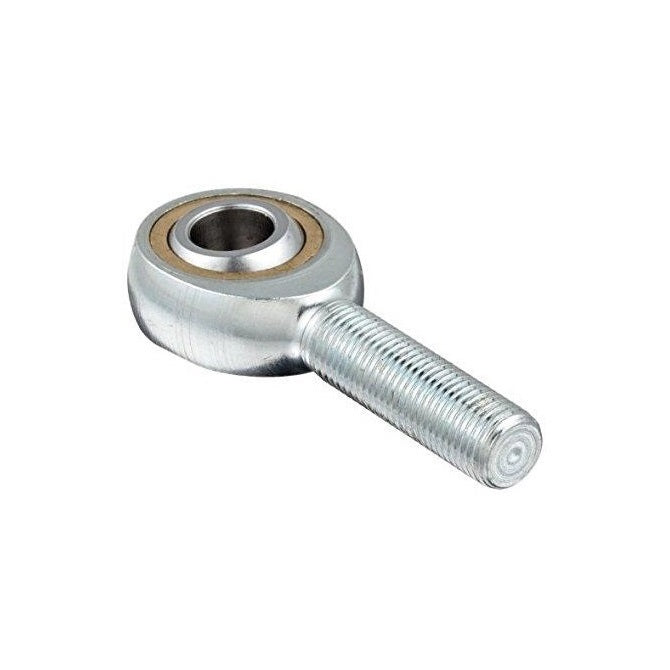

Rod Ends - Male - Steel - Bronze Lined - StandardStandard Bronze Lined Steel Male Rod Ends. Imperial and Metric / Carbon Steel. Also known as Heim Joints
- An expanded range may be available on special order. Please enquire.
- Dimensions not shown are available on request.
Product Data

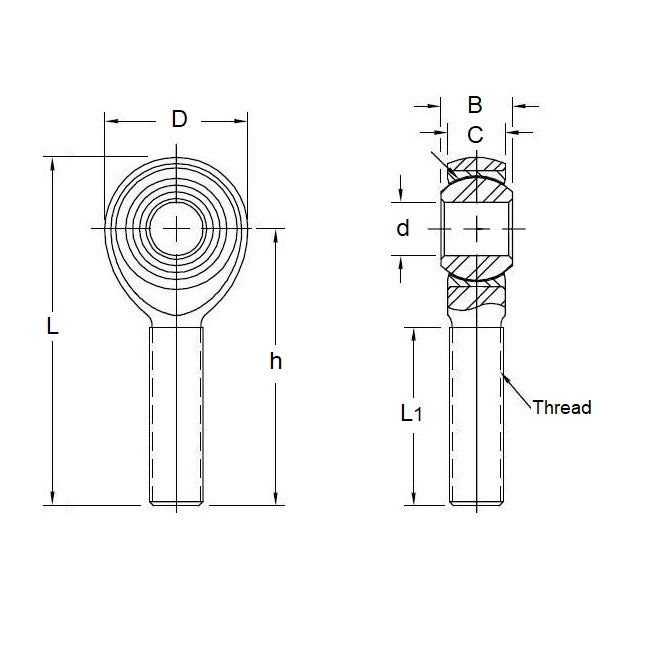

- Eye Size (d1)
:
12.7
mm
(Equiv. 0.5 in.) - Overall Length (L)
78.59
mm
(Equiv. 3.094 in.) - Thread Size 1/2-20 UNF Left
- Min. Thread Length (l2) 38.10 mm
- Head Width (W) 12.70 mm
- Eye Width (W1) 15.88 mm
- Head Diameter (D) 33.32 mm
- Centre Height (l1) 61.93 mm
- Grease Nipple No
- Material Bronze Lined Steel
Product Compliance and Data
Additional Resources
Cross References
- 6072K124-LEFT
- ASAHI JAMB8L
- KWK KMB8L
- IKO POSB8L
- Nachi POSB-8L
- NTN SMI-B8L
- 6072K124LEFT
- SMIB8L
