CNG-01270-C - Datasheet
MBA
Category Information

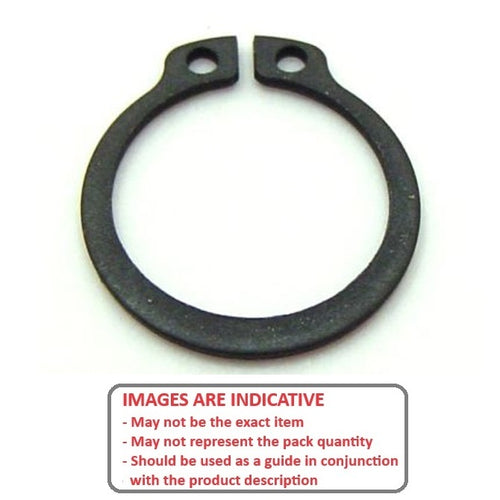

Retaining Rings - External - Circlips - GroovelessGrooveless Circlips External Retaining Rings. Includes MIL-R-21248/MS 90707 - Styles M1440 / Ellison GR / Seeger G and GA. Retaining rings. Snap Rings (USA).
- An expanded range may be available on special order. Please enquire.
- Reusable tapered section rings for grooveless shafts like plastics, tubes or castings.
- Can be used where adjustable ring placement is desired - like progressively tightening a compression spring.
Product Data

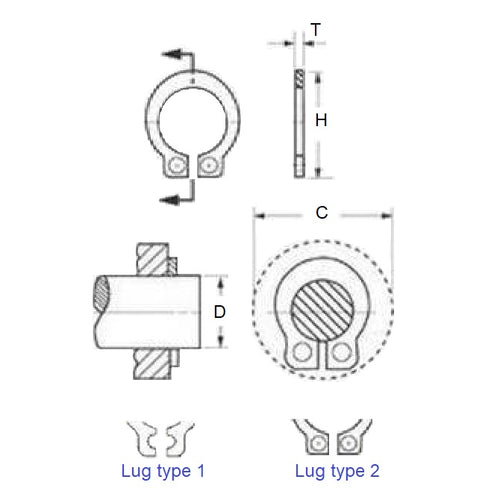

- Shaft Diameter (Ds)
:
12.70
mm
+/- 0.08
(Equiv. 0.5 in.) - Clip Thickness (T)
1.27
mm
(Equiv. 0.05 in.) - Approx. Loose Circlip ID (A) 11.90 mm
- Assemb. Clearance on Shaft (C) 22.61
- Allowable Load 264 N
- Lug Type 2 (Closed) mm
- Tool PRS-E070-X
- Material Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- NoCor SHF-050
- SHF050
- N1440-0050APP
- N14400050APP
