Miniature Bearings Australia
0R-0127-0610-DT-S440-T30 - Datasheet
MBA
Category Information

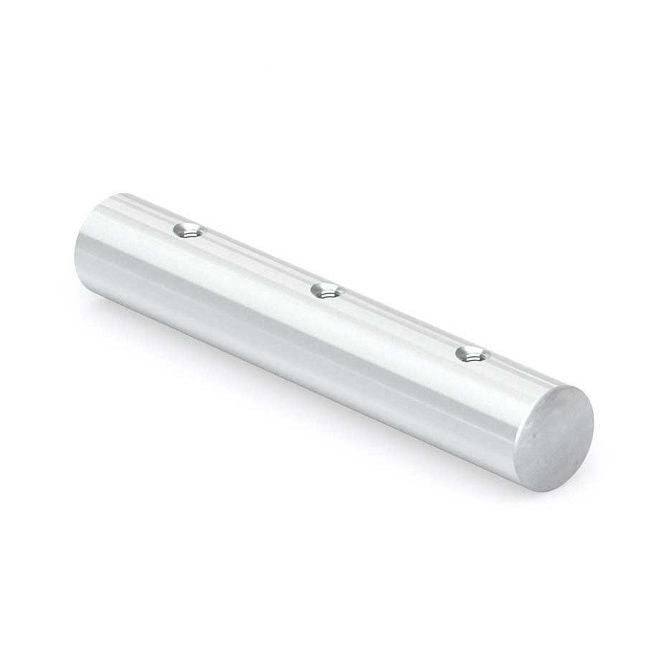

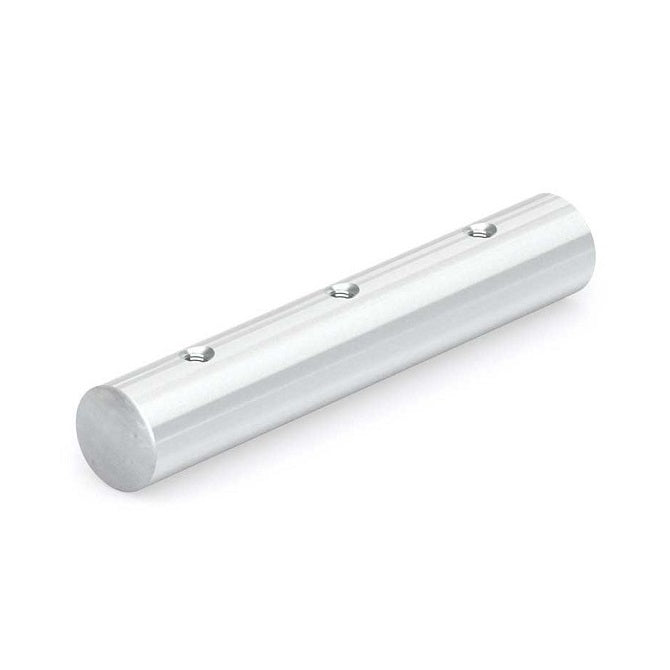

Shafting - Pre Drilled and Tapped - Stainless SteelStainless Steel Pre Drilled and Tapped Shafting. For use with rail supports and open linear bearings
Product Data

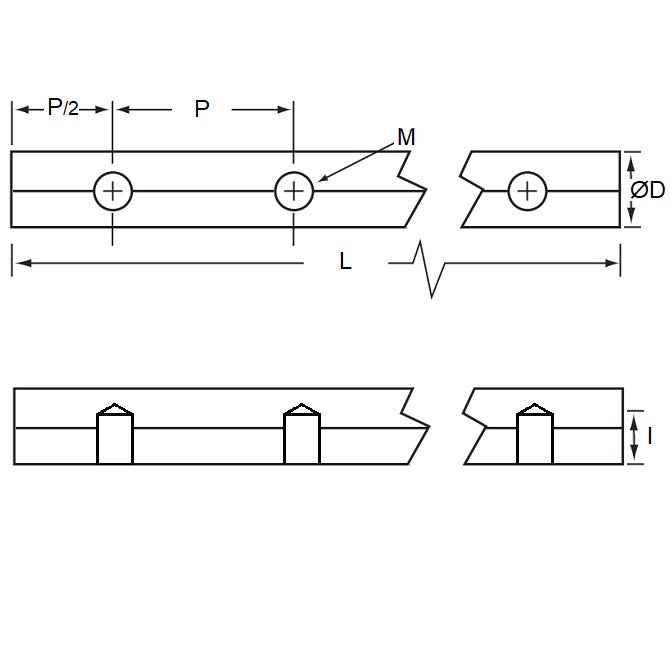

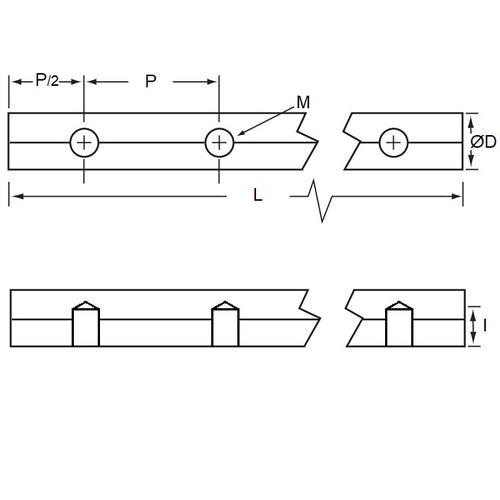

- Diameter (D)
:
12.700
mm
- 0.010 / - 0.030
(Equiv. 0.5 in.) - Length (L)
609.6
mm
(Equiv. 24 in.) - Material 440C Case Hardened Stainless
- Hole Pitch (P) 101.6
- Surface Finish 0.30 um Microns
- Hardness 60-65 Rockwell C
- Ends Finished and Chamfered
- Material Stainless Steel AISI 440C Carbon Steel Case Hardened
Product Compliance and Data
Additional Resources
Cross References
- TLM1831
- TLM-1831
