0R-0127-0381-ALCT-T30 - Datasheet

MBA

Category Information

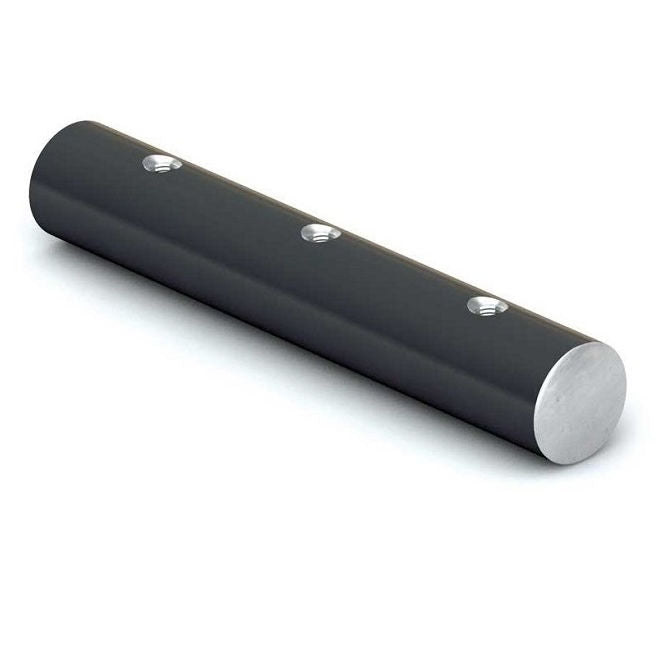

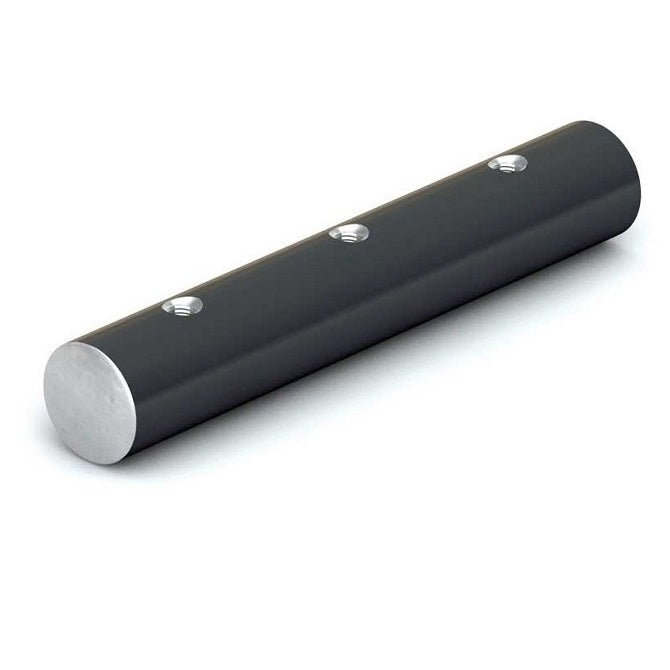

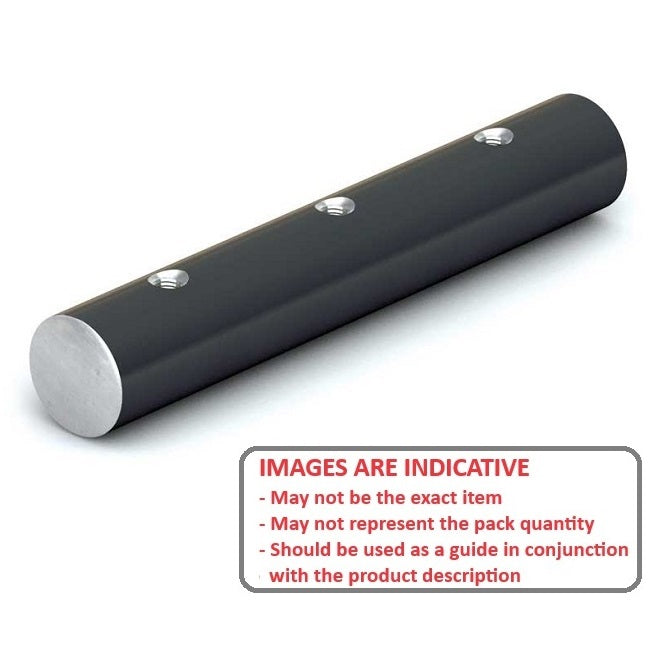

Shafting - Linear - Aluminium - Ceramic Coated - Tapped

Tapped Ceramic Coated Aluminium Linear Shafting. Recommended for use with Frelon Gold linear bearings. Aluminium 6061-T6 with ceramic coated finish. Ceramic coat has rockwell hardness of 70C. No magnetic and vibration reseistant.

  • Weld spatter, contaminants and paints will not stick.
  • Do not use with ball bearings. Use with Frelon lined or similar plain bearings only.
  • Shaft ends are not coated

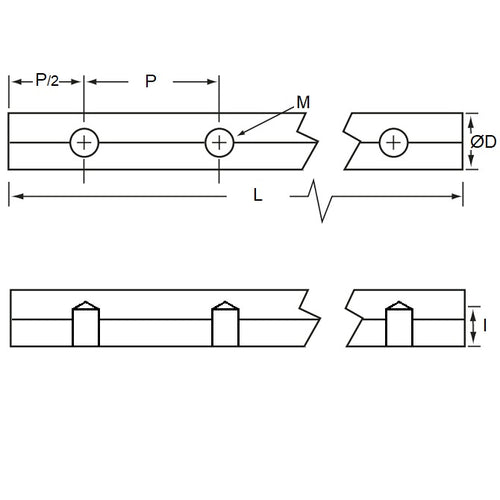

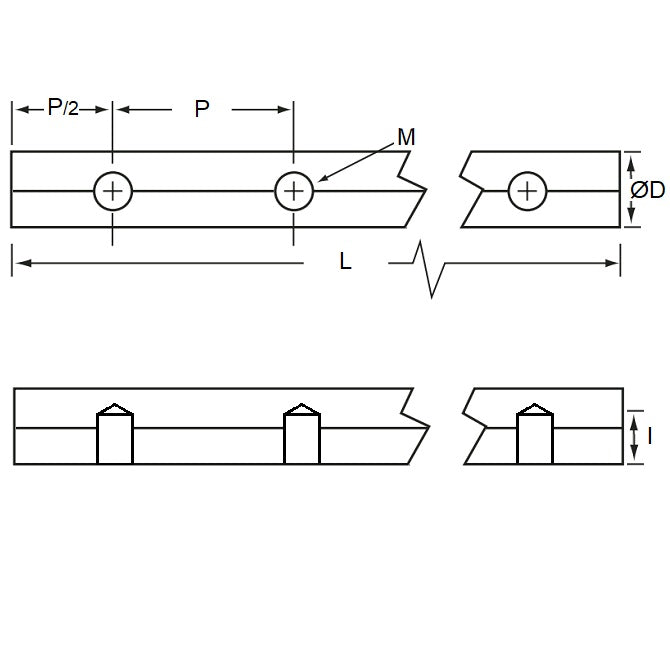

Product Data

  • Outside Diameter : 12.700 mm - 0.010 / - 0.030
    (Equiv. 0.5 in.)
  • Length 381 mm
    (Equiv. 15 in.)
  • Hole Spacing From End (A) 50.800 mm
    (Equiv. 2 in.)
  • Hole Spacing (B) 101.600 mm
  • Thread 6-32 UNC (3.5mm)
  • Material Ceramic Coated Aluminium
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • PBC1093
  • PBC-1093
