G009P-011-V32-048-032-B - Datasheet
MBA
Category Information

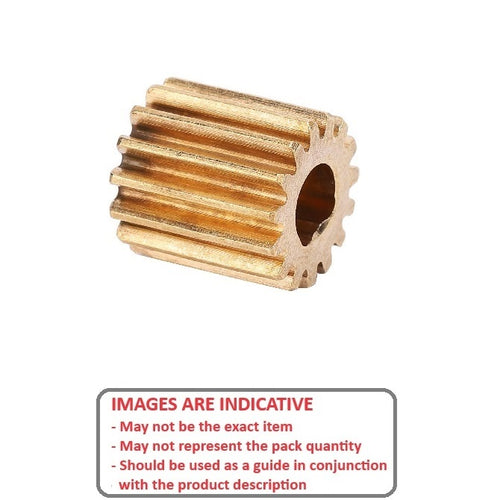

Gears - Spur - Hubless - 32DP - Brass - 14.5 Degree PA14.5 Degree PA Brass 32DP Hubless Spur Gears. PCD in mm = No. of Teeth x 0.79375 (1/32 in.). 14.5 Degree Pressure Angle. DP stands for Diametrical Pitch and is an imperial measurement system.
- There are more items available in this range than currently listed. Please enquire if you have special requirements. Expanded range includes hardened gears, stainless steel, antibacklash, and special bore sizes.
- Be sure to match the pitch type and tooth angle when selecting spur gears.
- An expanded range may be available on special order. Please enquire.
- The diameter increases by 1 inch for every 32 teeth
- 32 Diametrical Pitch. Approx 2.49mm between the teeth.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

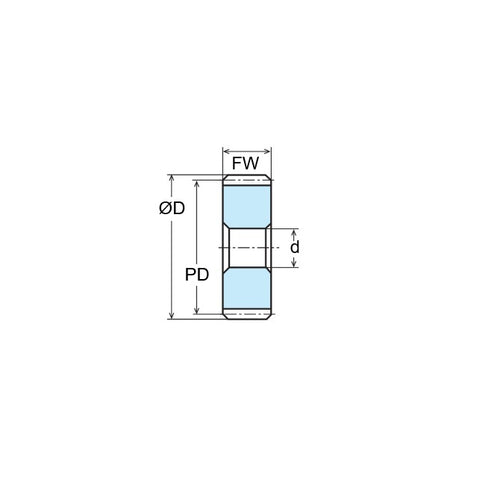

- Number of Teeth : 11
- Pitch Circle Diameter (PD)
8.74
mm
(Equiv. 0.344 in.) - Bore (d)
3.175
mm
(Equiv. 0.125 in.) - Outside Diameter (OD) 10.338 mm
- Face Width (FW) 4.76 mm
- Type Hubless
- Quality Commercial
- Material Brass
Product Compliance and Data
Additional Resources
Cross References
- G009B11V32048032BN
