BLB-01111-00500-SUJ - Datasheet
MBA
Category Information

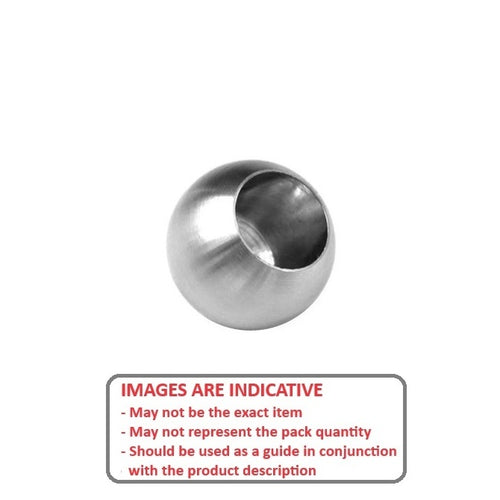

Balls - Bored - SteelSteel Bored Balls. Similr to the style used in steel rod ends.
- These bored balls are similar to the style of ball often found in a rod end or a spherical plain bearing.
- Used in machinery for applications such as pivots, in industries that include food processing, medical supplies, and general parts production.
- Hardness: 58-64 Rc.
- Material: SUJ-2.
Product Data
- Diameter (D)
:
11.112
mm
(Equiv. 0.437 in.) - Bore (B)
5.000
mm
+ 0.012 / - 0.0
(Equiv. 0.197 in.) - Width (W)
8.000
mm
(Equiv. 0.315 in.) - Flat Diameter (d1) 7.710 mm
- Chamfer (C) 0.3X45 mm
- Material Chrome Steel
Product Compliance and Data
Additional Resources
Cross References
- MTR GR-5
- KWK SS-5
- GR5
- SS5
