W0100-T-018-020-WC-CZ - Datasheet
MBA
Category Information

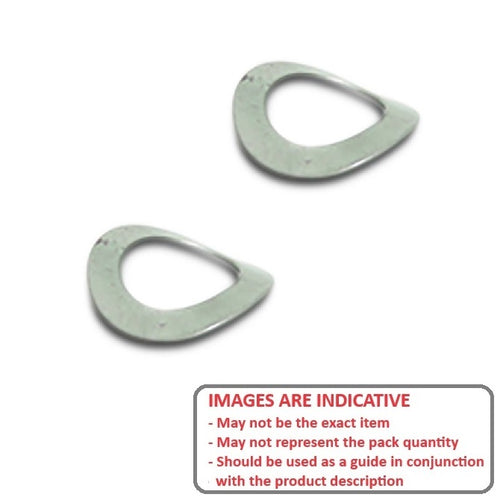

Washers - Spring - Curved - Carbon SteelCarbon Steel Curved Spring Washers. Carbon steel, curved selection.
- Spring washers are available in many different materials and types, including curved and waved series.
- They are designed to allow it to act like a spring, providing a small amount of preload, tension, or pressure to an assembly, helping to keep components securely fastened and minimizing vibration
- An expanded range may be available on special order. Please enquire.
- ID and OD are long axis dimensions
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

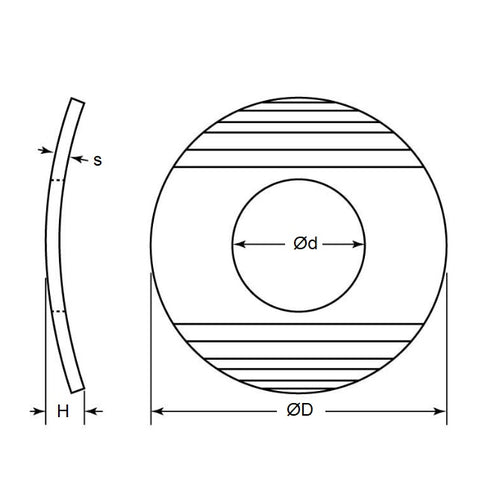

- Nominal Inside Diameter (B)
:
10.00
mm
+ 0.430 / - 0
(Equiv. 0.394 in.) - Nominal Outside Diameter (A)
18.00
mm
+/- 0.55
(Equiv. 0.709 in.) - Nom. Height (C)
2.00
mm
(Equiv. 0.079 in.) - Thickness (D) 0.80 mm
- Info Zinc Plated
- Type Curved DIN 137 Type A
- Nominal Screw Size M10, 3/8
- Actual ID (Ref) 10.5 mm
- Material Carbon Spring Steel Zinc Plated
Product Compliance and Data
Additional Resources
Cross References
- MD0137MQA180
