MSF-254C-S3AP - Datasheet
MBA
Category Information

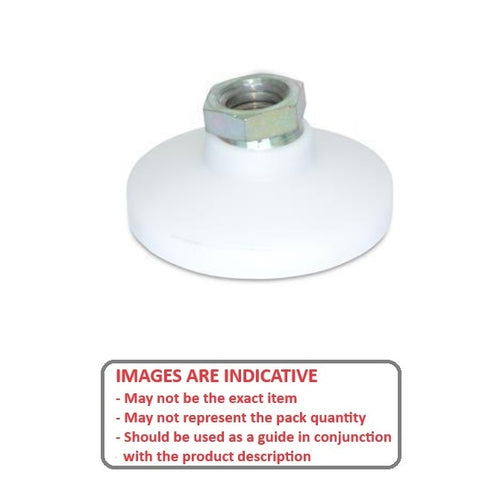

Mounts - Levelling Socket - Swivel - 303 Stainless Acetal Base303 Stainless Acetal Base Swivel Levelling Socket Mounts. Levelling adjusters. 15o swivel off centreline to adjust to uneven surfaces and level machine tools, electronic racks and benches.
- An expanded range may be available on special order. Please enquire.
Product Data
- Thread Size (A) : 1-8 UNC (25.4mm)
- Base Diameter (D)
101.6
mm
(Equiv. 4 in.) - Foot Height (C)
47.6
mm
(Equiv. 1.874 in.) - Min. Thread Depth 20.6 mm
- Base Height (E) 27.76 mm
- Load Rating 1090 Kg
- Pad Material Delrin
- Hex Flats (B) 34.93 mm
- Material Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
Product Compliance and Data
Additional Resources
Cross References
- MSF1090254C36
- LD4SS
- LD-4SS
