RR-410RS - Datasheet
MBA
Category Information

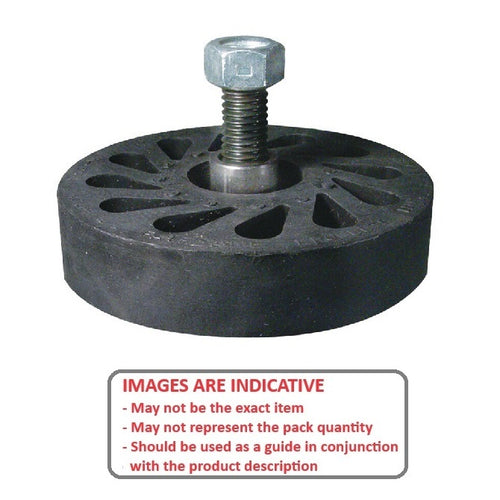

Rollers - Durasoft Stud Mount - NeopreneNeoprene Durasoft Stud Mount Rollers. Used on conveyors, belt idlers, shock cushioners, stamping die part guides, supports etc.
- Designed for use in machines and assembly operations where part movement and protection is needed.
- Durasoft rollers have a gentle but firm touch.
- Unique shape of holes adds to their soft but resilient nature.
Product Data

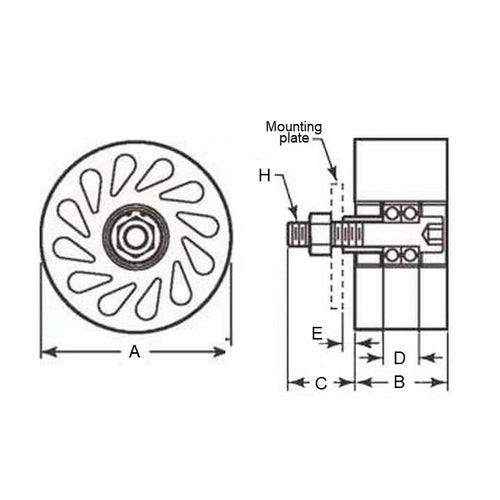

- Diameter (A)
:
101.60
mm
(Equiv. 4 in.) - Thread
1/2-13 UNC (12.7mm)
(Equiv. 0.039 in.) - Thread Length (C)
35.814
mm
(Equiv. 1.41 in.) - Bearing Overall Width (D) 19.050 mm
- E 6.350 mm
- Mount Height (B) 49.28 mm
- Durometer Shore A 20
- Number of Bearings 2
- Material Neoprene Rubber
