RR-408RS - Datasheet
MBA
Category Information

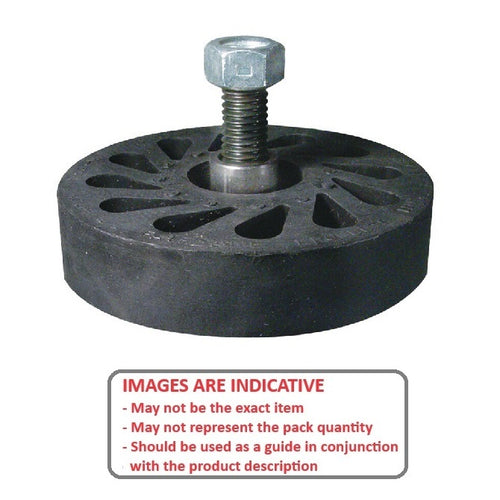

Rollers - Durasoft Stud Mount - NeopreneNeoprene Durasoft Stud Mount Rollers. Used on conveyors, belt idlers, shock cushioners, stamping die part guides, supports etc.
- Designed for use in machines and assembly operations where part movement and protection is needed.
- Durasoft rollers have a gentle but firm touch.
- Unique shape of holes adds to their soft but resilient nature.
Product Data

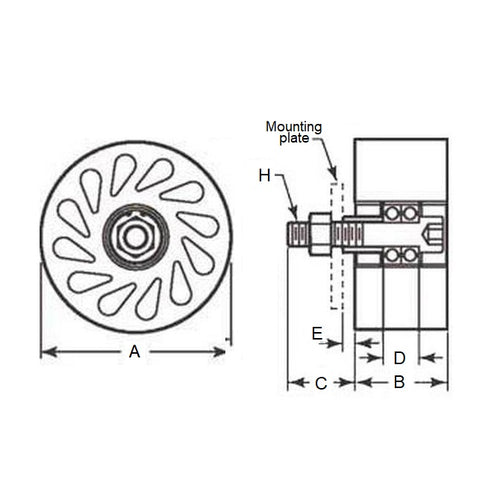

- Diameter (A)
:
101.60
mm
(Equiv. 4 in.) - Thread 1/2-13 UNC (12.7mm)
- Thread Length (C)
27.940
mm
(Equiv. 1.1 in.) - Bearing Overall Width (D) 9.525 mm
- E 3.175 mm
- Mount Height (B) 23.37 mm
- Durometer Shore A 35
- Number of Bearings 1
- Material Neoprene Rubber
