MLM-080M-045-TP-040 - Datasheet
MBA
Category Information

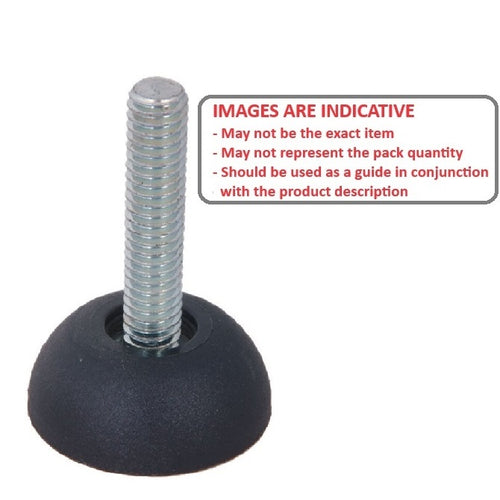

Mounts - Levelling Studded - Standard - ThermoplasticThermoplastic Standard Levelling Studded Mounts. Levelling adjusters. Economical choice for a wide range of applications.
- An expanded range may be available on special order. Please enquire.
- Base is made from reinforced thermoplastic.
- Threaded stem is steel.
- Optional non skid rubber pads available separately
Product Data

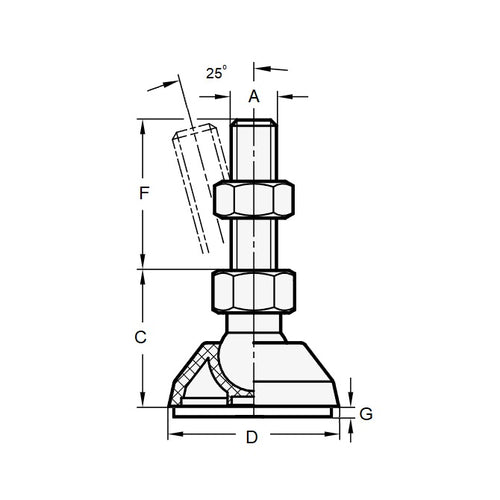

- Thread Size (A) : M8 (8x1.25mm)
- Base Diameter (D)
40.0
mm
(Equiv. 1.575 in.) - Foot Height (C)
22.0
mm
(Equiv. 0.866 in.) - Thread Length (F) 45.0 mm
- Base Height (E) 22.0 mm
- Overall Height 67.0 mm
- Load Rating 100 Kg
- Finish Zinc Plated
- Pad Thickness (G) 3.00 mm
- Material Steel
Product Compliance and Data
Additional Resources
Cross References
- RST-510
- RST510
- MLM0100224045M08P
- MLM1000224045M08P
