MLM-100M-045-TP-080 - Datasheet
MBA
Category Information

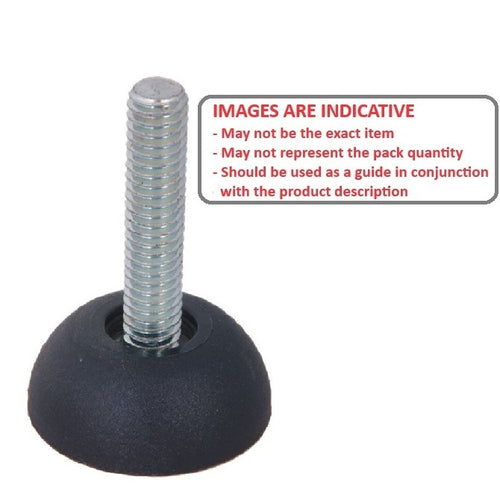

Mounts - Levelling Studded - Standard - ThermoplasticThermoplastic Standard Levelling Studded Mounts. Levelling adjusters. Economical choice for a wide range of applications.
- An expanded range may be available on special order. Please enquire.
- Base is made from reinforced thermoplastic.
- Threaded stem is steel.
- Optional non skid rubber pads available separately
Product Data
- Thread Size (A) : M10 (10x1.5mm)
- Base Diameter (D)
80.0
mm
(Equiv. 3.15 in.) - Foot Height (C)
27.0
mm
(Equiv. 1.063 in.) - Thread Length (F) 45.0 mm
- Base Height (E) 27.0 mm
- Overall Height 72.0 mm
- Load Rating 100 Kg
- Finish Zinc Plated
- Pad Thickness (G) 2.00 mm
- Material Steel
Product Compliance and Data
Additional Resources
Cross References
- RST522
- RST-522
- MLM1000278045M10P
- MLM0100278045M10P
