CS-1067-0254-11-M-C - Datasheet
MBA
Category Information

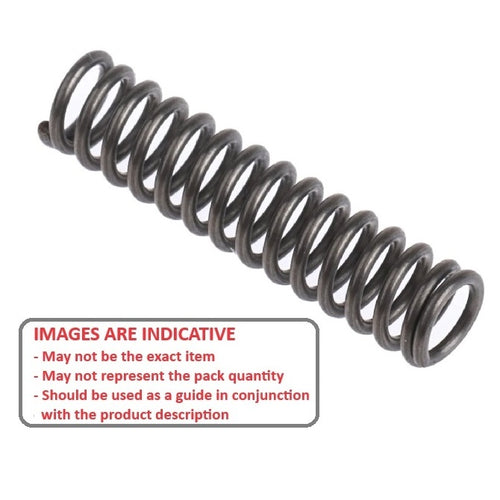

Springs - Compression - Music WireMusic Wire Compression Springs. Carbon spring steel selection. Standard springs may or may not be suplied with ground flush ends.
- Helical coil spring designed to resist compressive forces, meaning it shortens in length when pushed or squeezed.
- Used in a wide range of applications, such as pens, door hardware, machinery in automotive, aerospace, and manufacturing industries.
- This category includes short and long lengths.
- If the end type is important to your application please contact us for more information or a special quote.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.
- Spring OD (D0)
:
10.67
mm
+/- 0.203
(Equiv. 0.42 in.) - Free Length (L0)
25.4
mm
+/- 0.64
(Equiv. 1 in.) - Wire Diameter (d)
1.14
mm
+/- 0.018
(Equiv. 0.045 in.) - Rate (P/f) 2.2 N/mm
- Approx. ID 8.4 mm
- End Type Closed
- Material Carbon Spring Steel
Product Compliance and Data
Additional Resources
Cross References
- S-1340
- S1340
