PLST-048F-119-AC-011 - Datasheet
MBA
Category Information

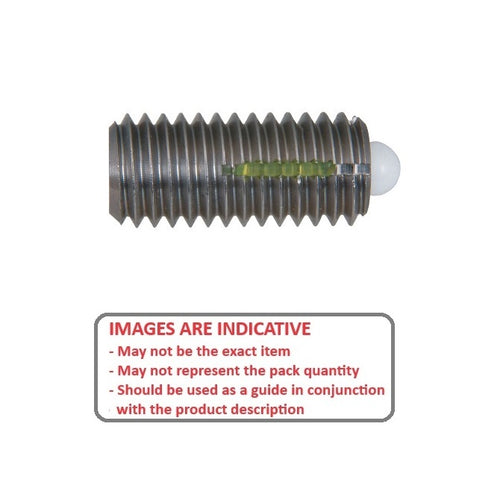

Plungers - Spring - No Handle - Steel - Acetal NoseAcetal Nose Steel No Handle Spring Plungers. Steel body and acetal nose
- A compact mechanical component with a spring-loaded ball or pin inside a housing that applies consistent, predictable force. Internal spring compresses when pressure is applied to the ball or pin, allowing it to settle into designated positions or recess.
- Provides a reliable holding or locating mechanism in various industrial applications where precise alignment or securing of parts is needed.
- Also known as ball plungers or spring-loaded pins.
- Items shown with Long-Lok have a dry threadlocking sealant applied to thread.
Product Data
- Thread Size (A) : 10-32 UNF (4.76mm)
- Thread Length (B)
11.9
mm
(Equiv. 0.469 in.) - Initial Pressure (F1) 3.3 N
- Final Pressure (F2) 11.1 N
- Tip Diameter (D) 2.4 mm
- Tip Length (C) 1.7 mm
- Body Length (B) 11.9 mm
- Drive Slotted
- Material Steel Body with Acetal Nose
Product Compliance and Data
Additional Resources
Cross References
- 8499A831
- LNK2
- LNK-2
